Product Details
＋

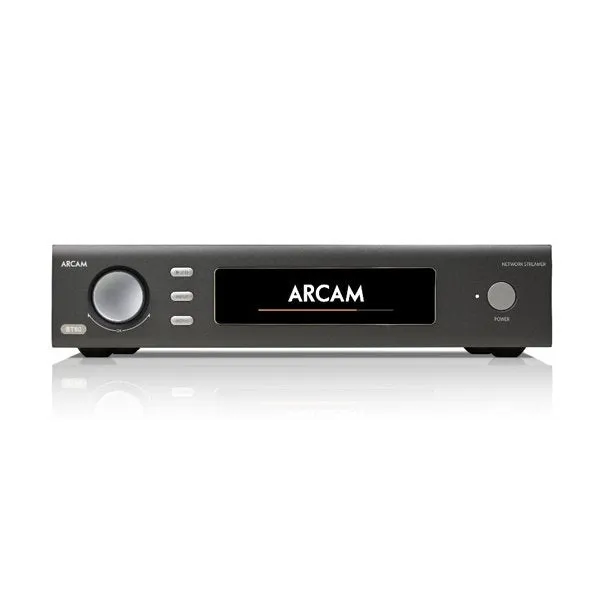

Arcam ST60 Streamer
A high-performance streaming source the ST60 enables streaming audio from all of the major services (Tidal, Qobuz, Spotify, Napster, Deezer, etc) over Cast or Airplay2. It will also handle UPnP sources and is Roon Ready.
It is the perfect companion for the HDA range of stereo amplifiers and is also fully compatible with the MusicLife app.
Features
4 digital inputs
Balanced XLR and Single ended RCA analogue outputs
Fixed and variable audio output
Optical and coaxial digital outputs
GoogleCast, Airplay2, uPnP Streamer
Roon endpoint
MQA supported
32-bit ESS9038K2M Sabre DAC
Full I/P and RS232 control including Control4 and Crestron
Total harmonic distortion noise = 0.0008%
Analogue Outputs
Digital to Analogue Conversion ESS9038 32-bit/192kHz Delta-Sigma DAC
Signal/Noise Ratio (Awtd) 118dB unbalanced, 122db balanced
Harmonic Distortion (1kHz) <0.0008%
Frequency response 10Hz – 20kHz ± 0.5dB
Output Level (Fixed) 2.2Vrms unbalanced, 4.5Vrms balanced
Output Impedance 47Ω unbalanced, 600Ω balanced
Minimum Recommended Load 5kΩ
RMS Jitter < 20 psec
Digital Inputs
SPDIF Receiver AKM4113
Supported sample rates Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth 16-bit – 32-bit
Digital Interfaces
USB USB 2.0 High Speed (480Mbps)
Ethernet 10/100Mbps
Wireless 802.11b/g/n
General
Mains voltage 110–240V, 50–60Hz
Maximum power consumption 10W
Low power standby consumption 0.5W
Network standby consumption 2W
Dimensions W x H x D (including feet and control knob) 433x102x306mm Weight (net) 5.5kg Weight (gross) 7.9kg
Supplied accessories
Mains leads
Remote control
2 x AAA batteries
User Manual
2 x WiFi Antenna
A high-performance streaming source the ST60 enables streaming audio from all of the major services (Tidal, Qobuz, Spotify, Napster, Deezer, etc) over Cast or Airplay2. It will also handle UPnP sources and is Roon Ready.
It is the perfect companion for the HDA range of stereo amplifiers and is also fully compatible with the MusicLife app.
Features
4 digital inputs
Balanced XLR and Single ended RCA analogue outputs
Fixed and variable audio output
Optical and coaxial digital outputs
GoogleCast, Airplay2, uPnP Streamer
Roon endpoint
MQA supported
32-bit ESS9038K2M Sabre DAC
Full I/P and RS232 control including Control4 and Crestron
Total harmonic distortion noise = 0.0008%
Analogue Outputs
Digital to Analogue Conversion ESS9038 32-bit/192kHz Delta-Sigma DAC
Signal/Noise Ratio (Awtd) 118dB unbalanced, 122db balanced
Harmonic Distortion (1kHz) <0.0008%
Frequency response 10Hz – 20kHz ± 0.5dB
Output Level (Fixed) 2.2Vrms unbalanced, 4.5Vrms balanced
Output Impedance 47Ω unbalanced, 600Ω balanced
Minimum Recommended Load 5kΩ
RMS Jitter < 20 psec
Digital Inputs
SPDIF Receiver AKM4113
Supported sample rates Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth 16-bit – 32-bit
Digital Interfaces
USB USB 2.0 High Speed (480Mbps)
Ethernet 10/100Mbps
Wireless 802.11b/g/n
General
Mains voltage 110–240V, 50–60Hz
Maximum power consumption 10W
Low power standby consumption 0.5W
Network standby consumption 2W
Dimensions W x H x D (including feet and control knob) 433x102x306mm Weight (net) 5.5kg Weight (gross) 7.9kg
Supplied accessories
Mains leads
Remote control
2 x AAA batteries
User Manual
2 x WiFi Antenna
