Made from Composite & Polymer Materials!

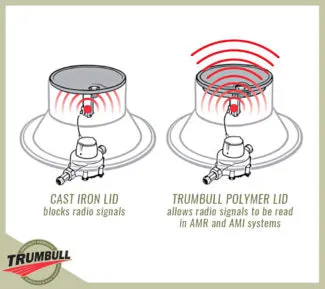

• Allow radio signals to be read in AMR and AMI systems, unlike cast iron lids that block them
• Versatile antenna mounting options

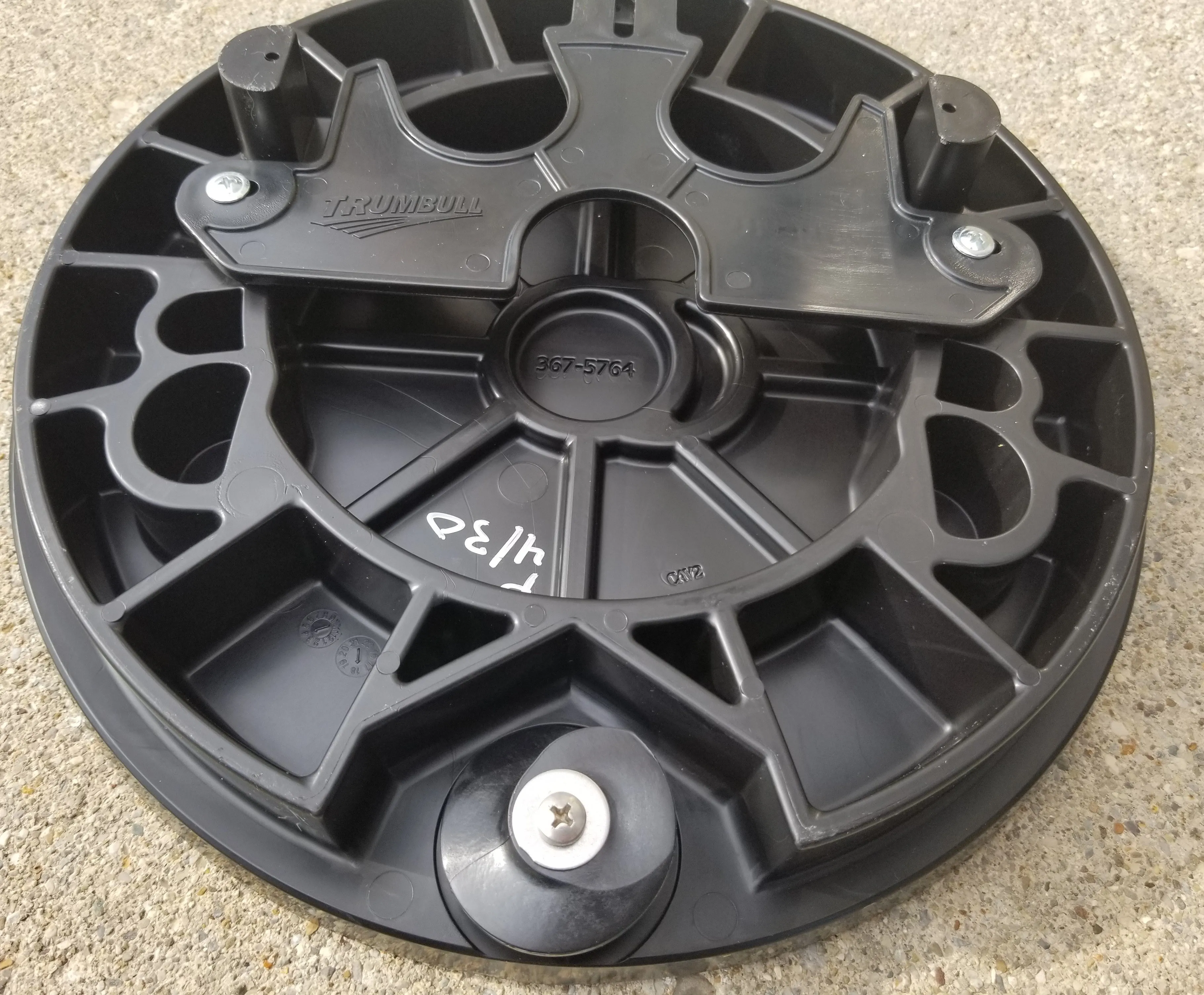

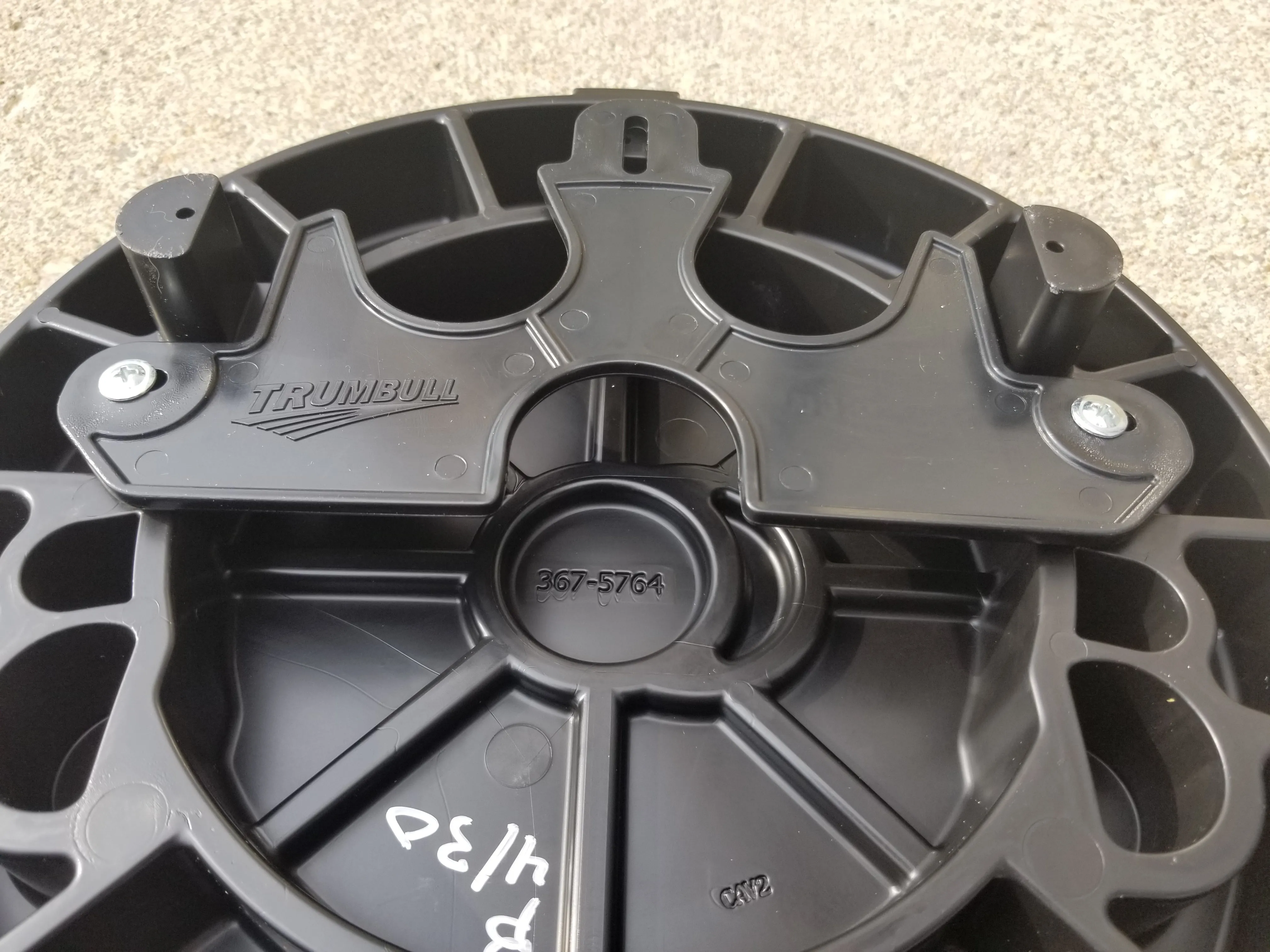

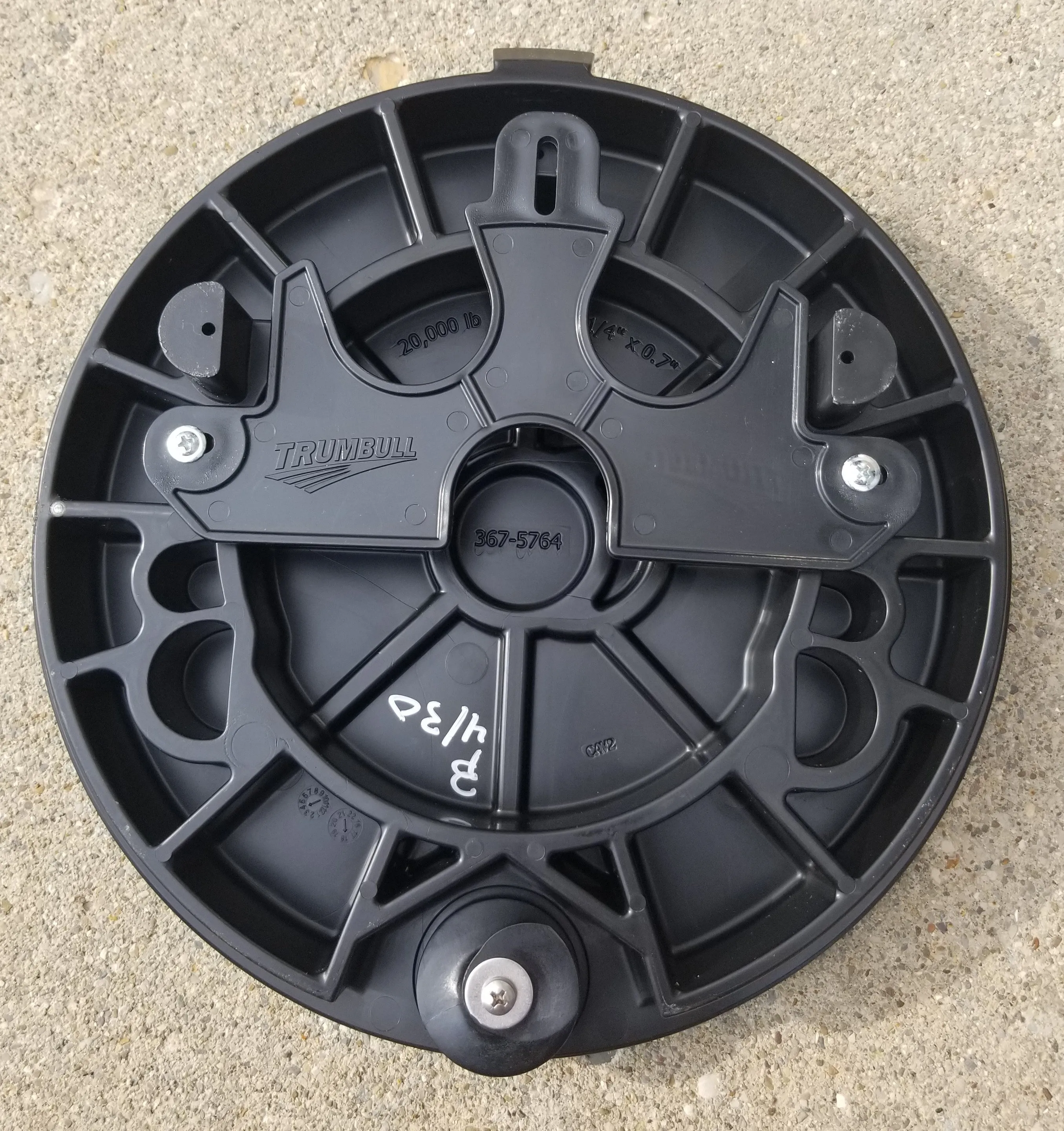

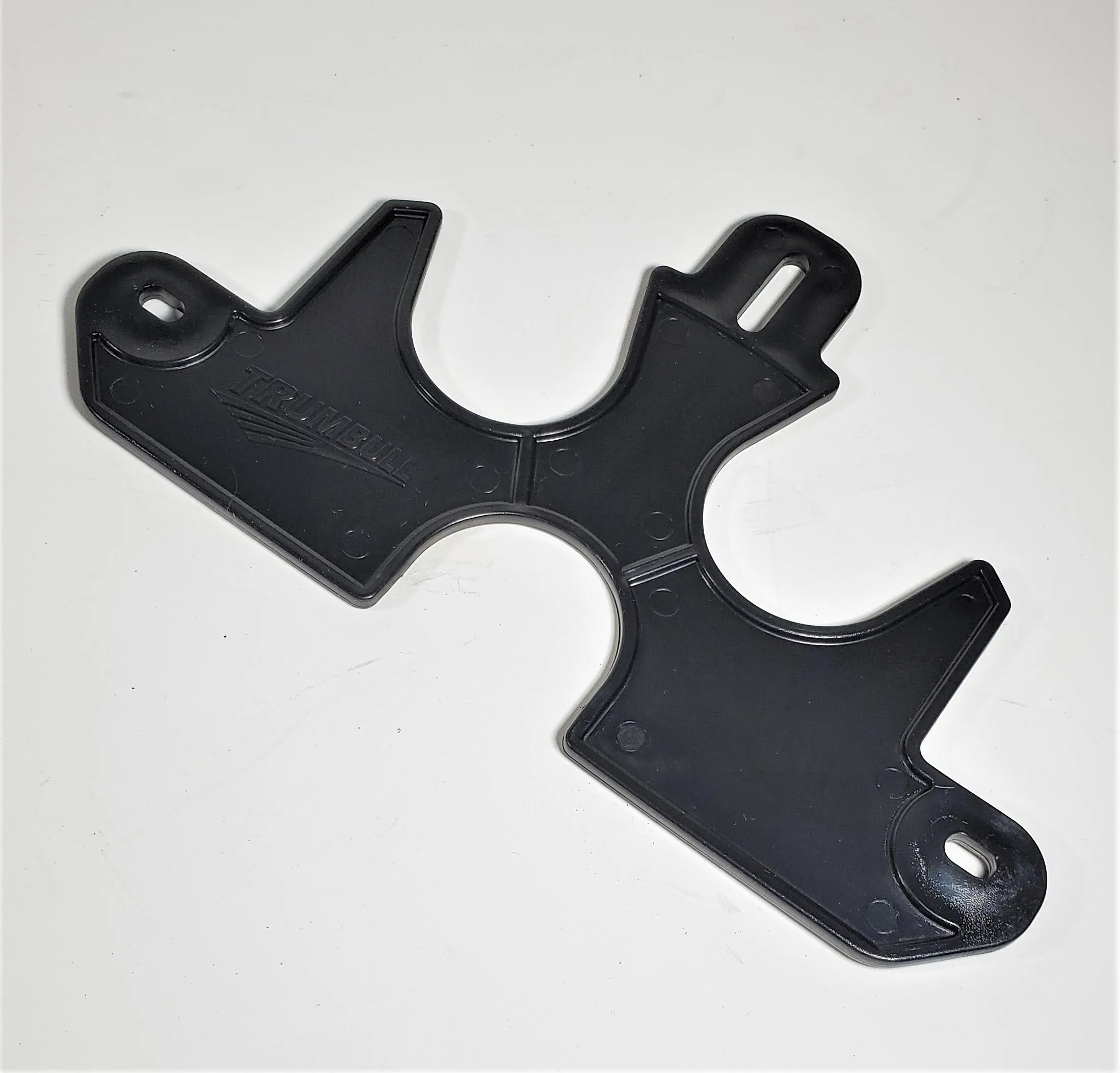

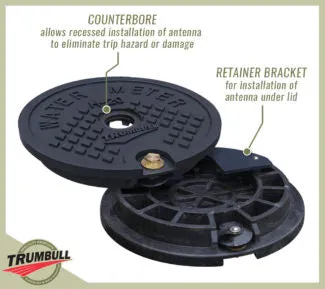

  • Retainer bracket included, for installation of under-the-lid antennas

  • Covers with Counter-bores for through the lid flush mount AMR and AMI antennas are available in separate listings on our site. Others are available by special order.

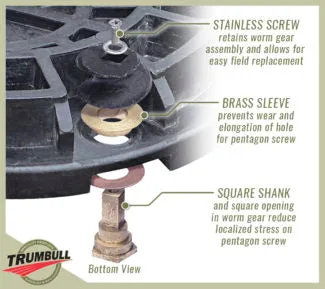

• Worm gear assembly with bronze pentagon bolt
• ADA compliant slip-resistant surface
• UV resistant materials

Frames, Solid Lids, and under lid AMR brackets are generally in stock.

See these other listings for AMR/AMI or touch read module lids with recessed counter bores.

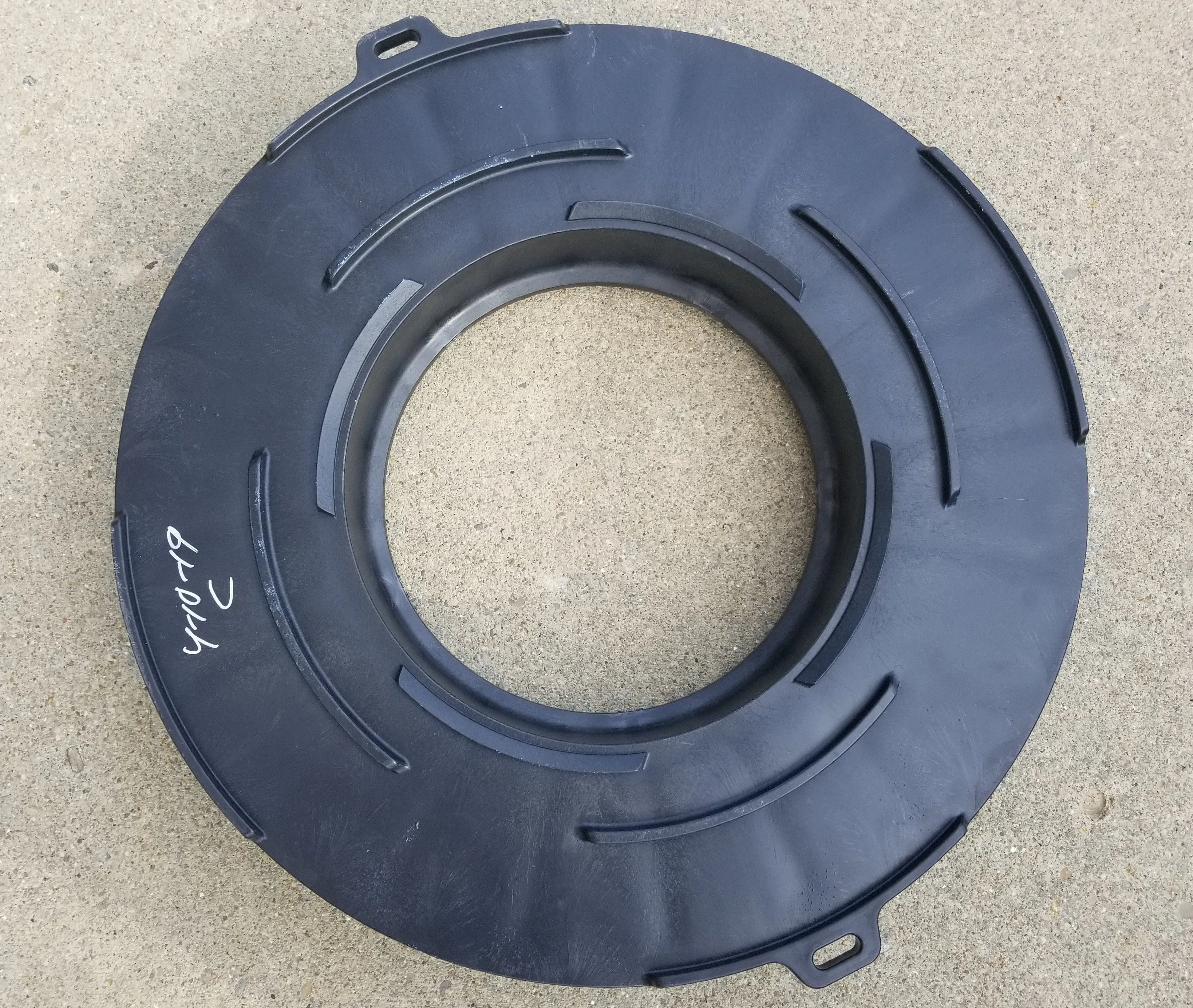

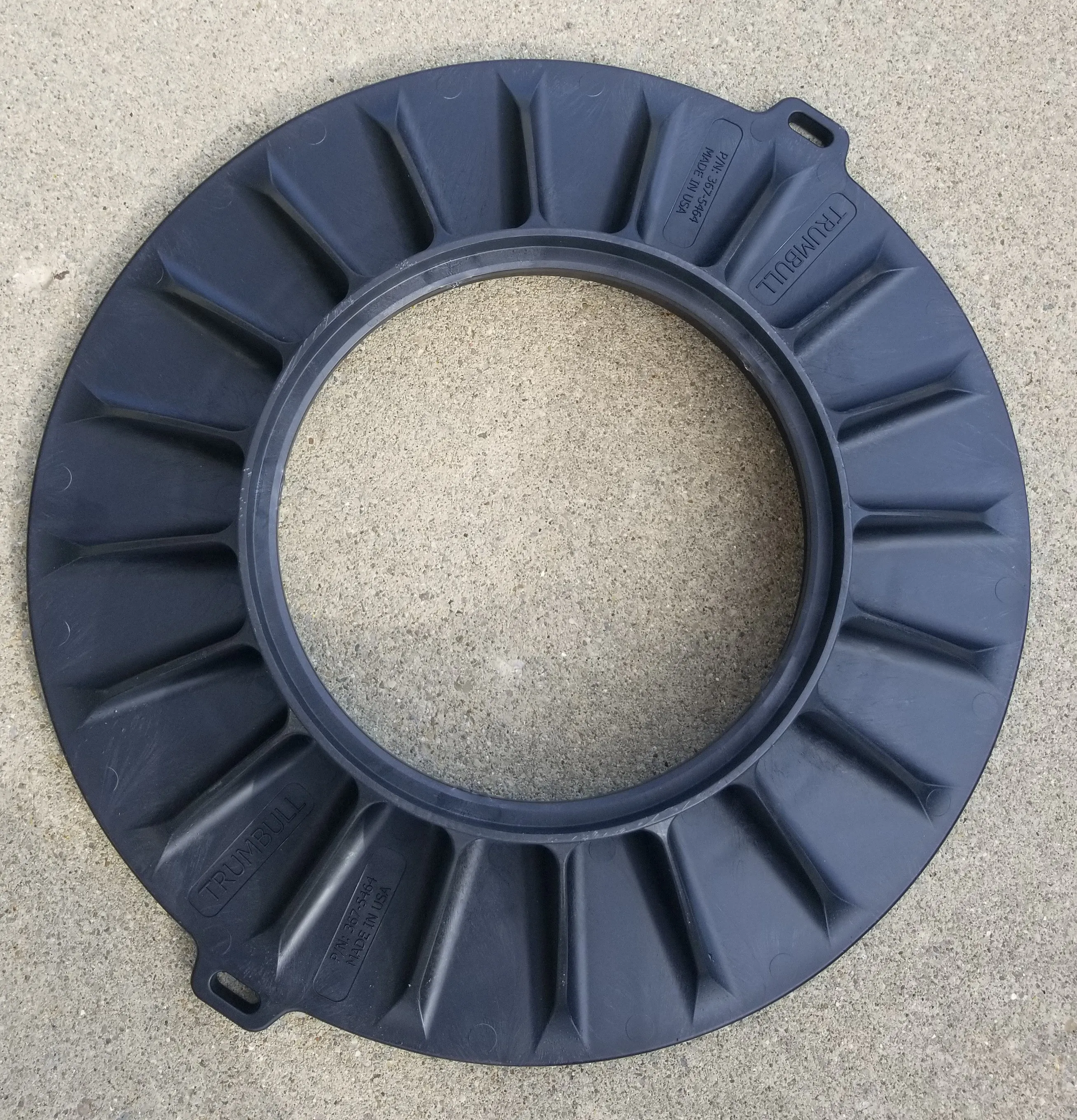

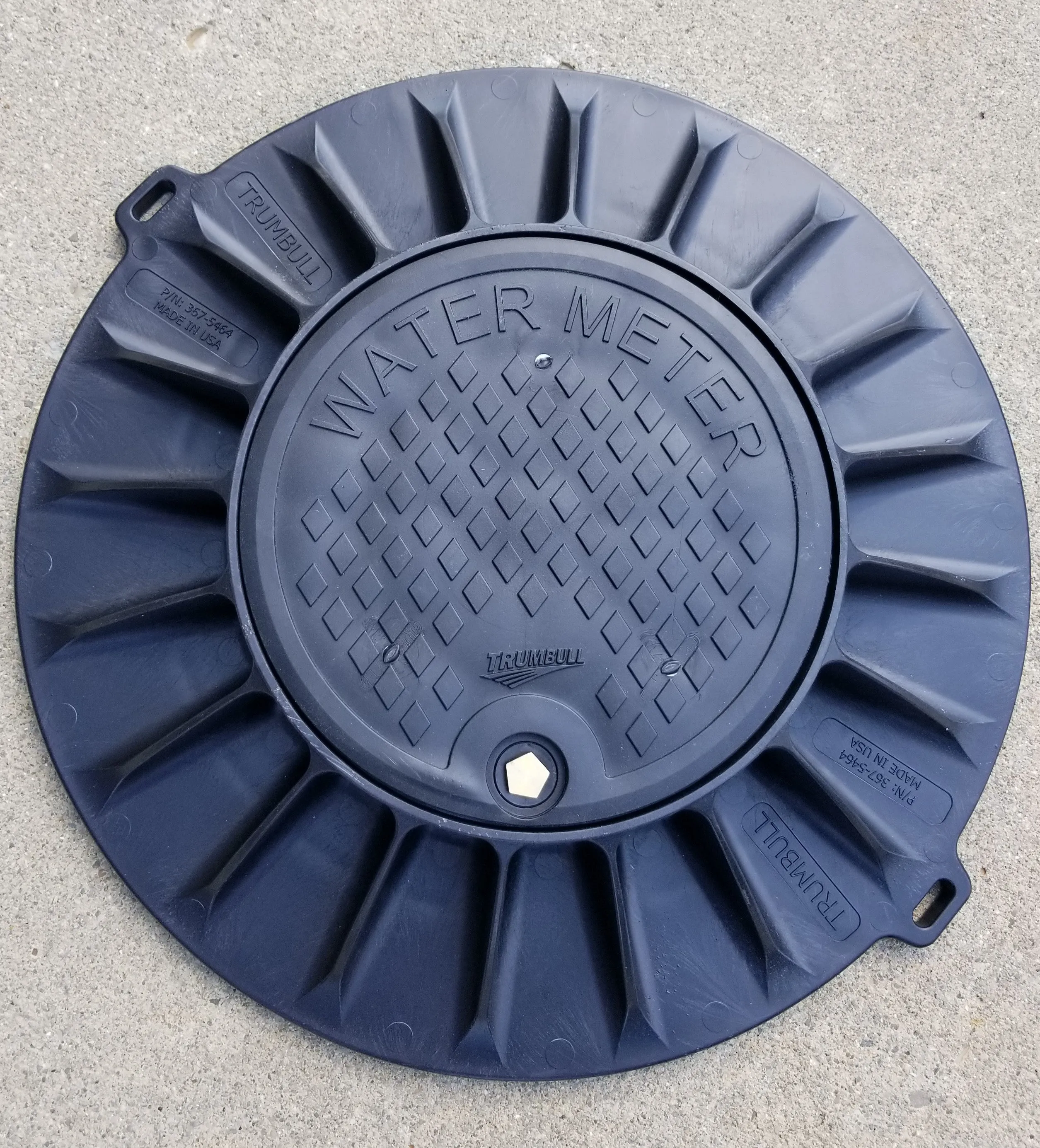

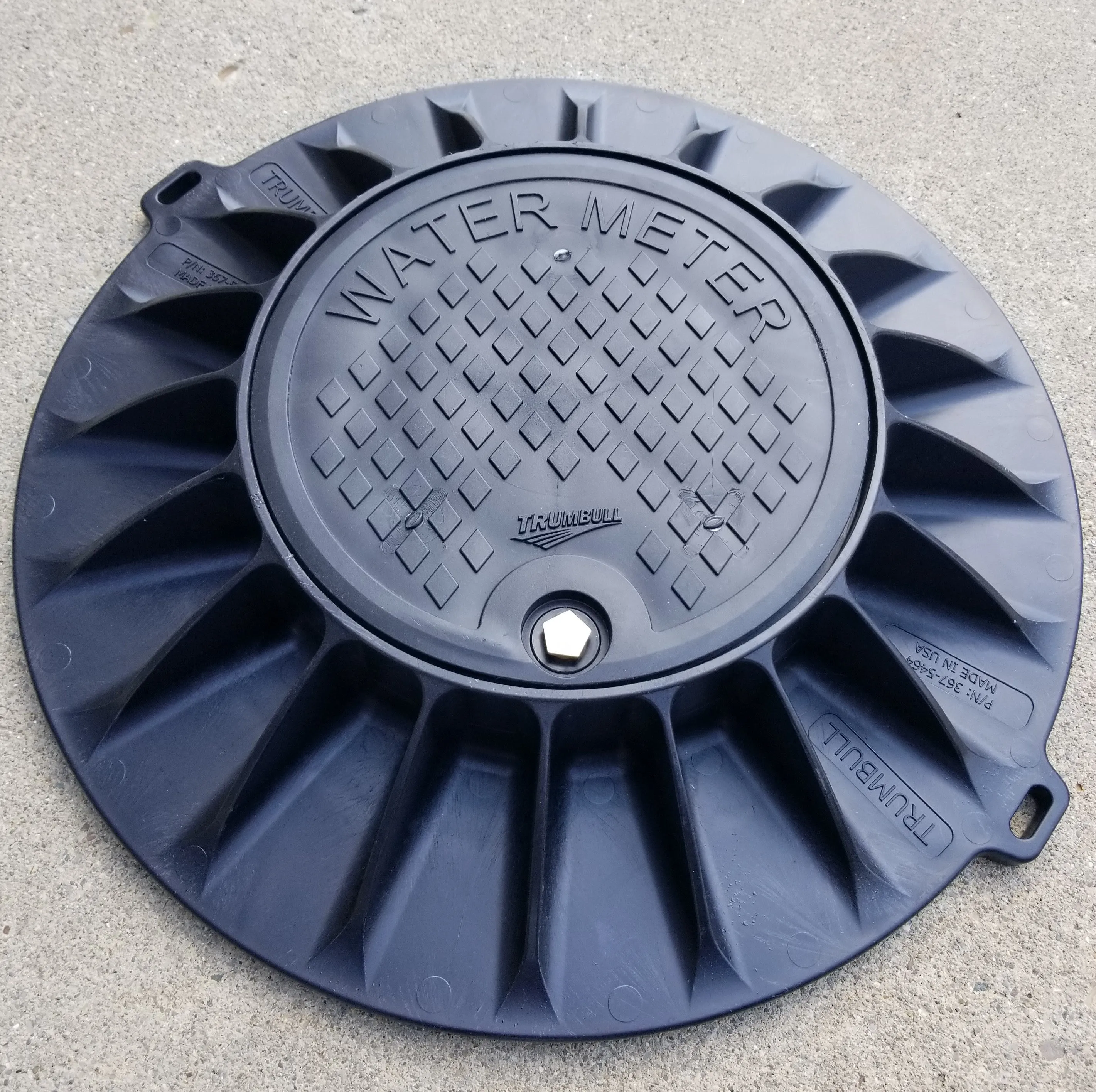

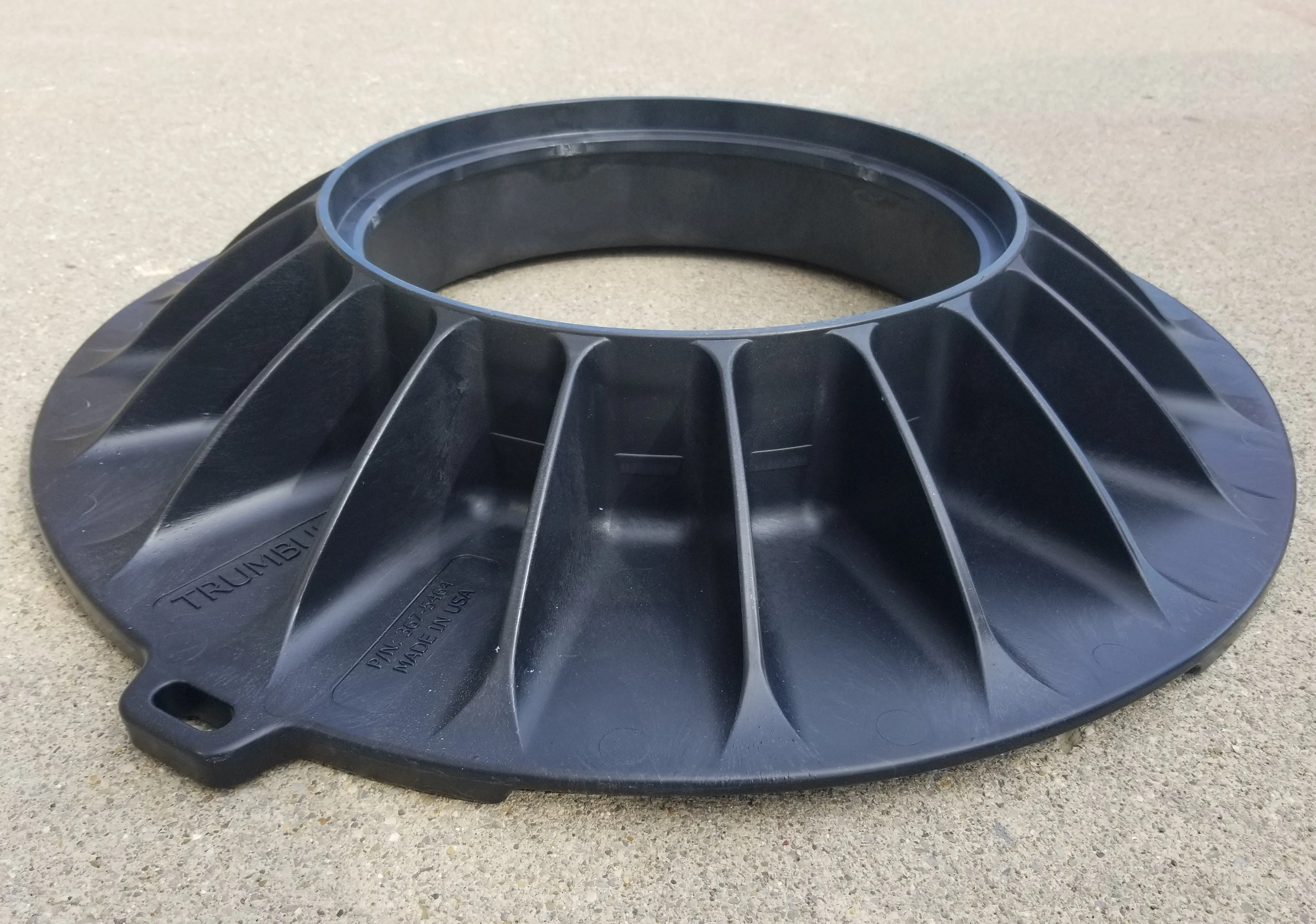

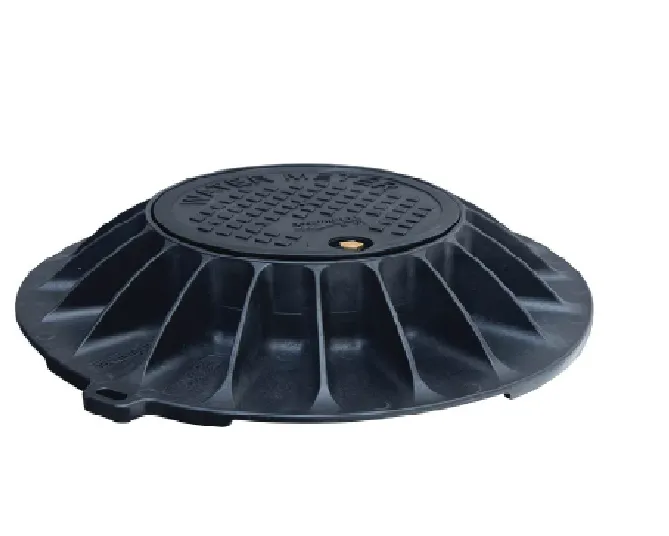

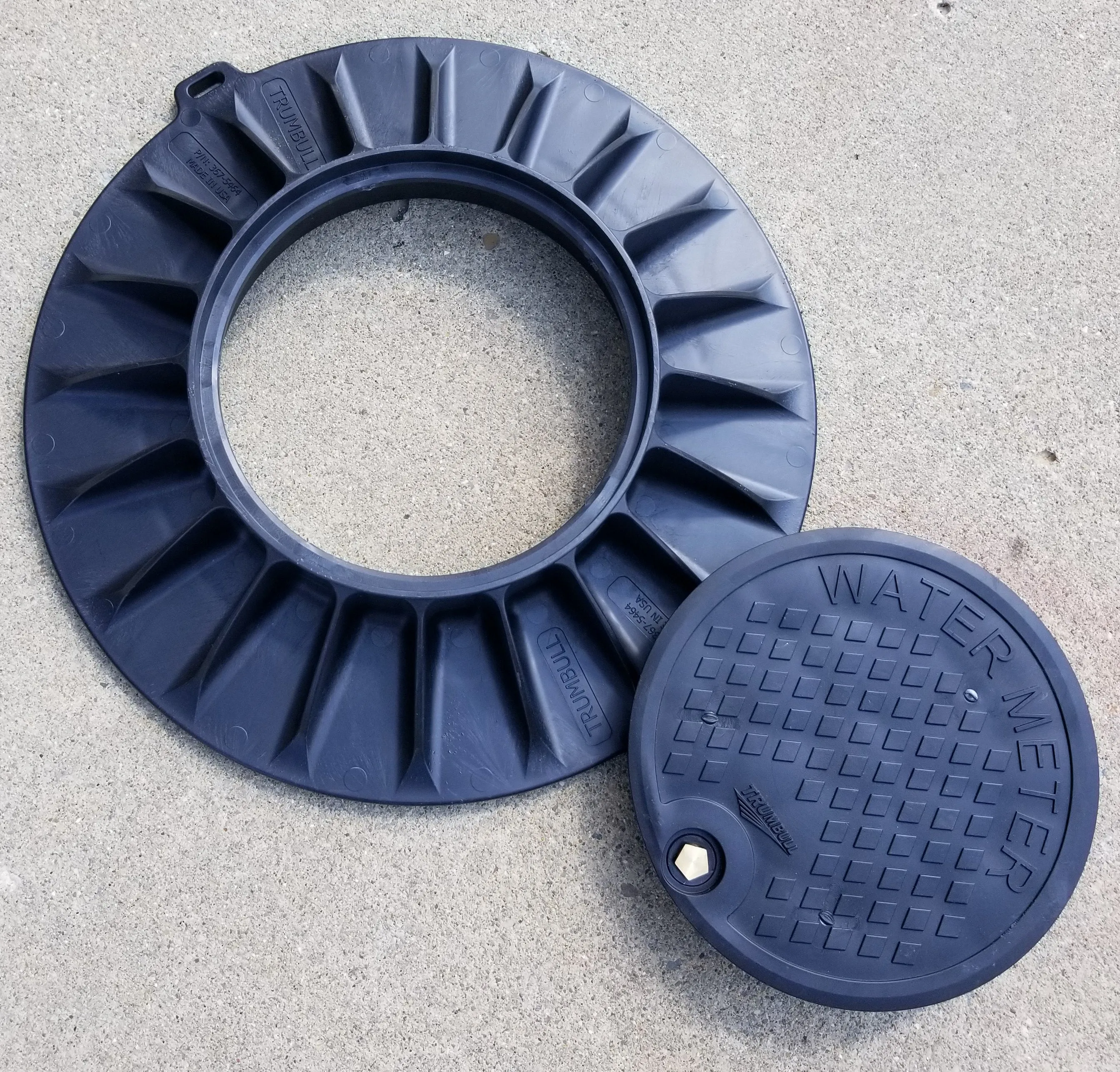

Trumbull Frame/Ring

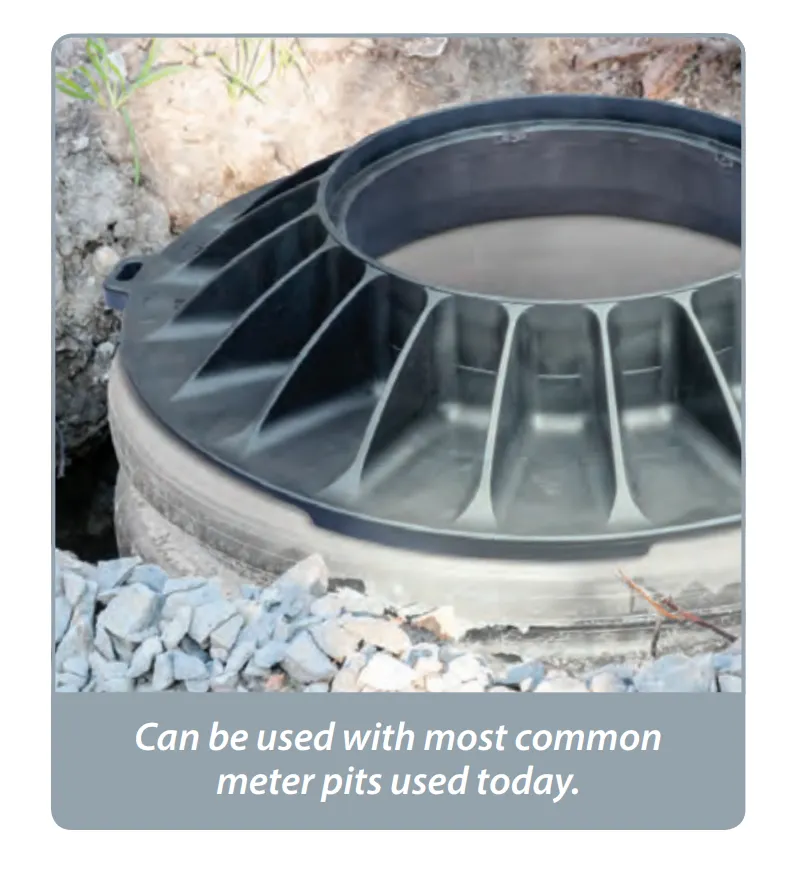

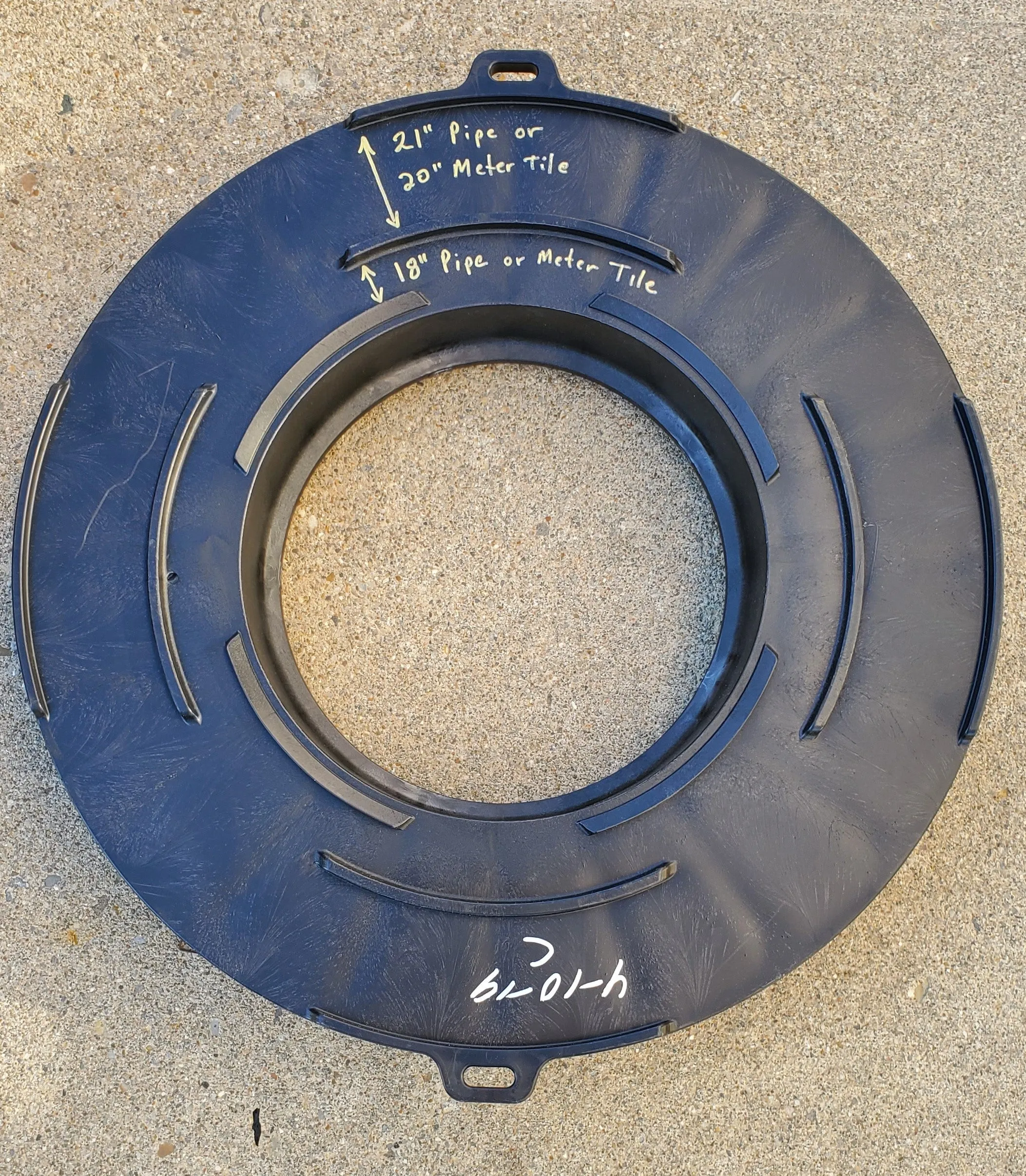

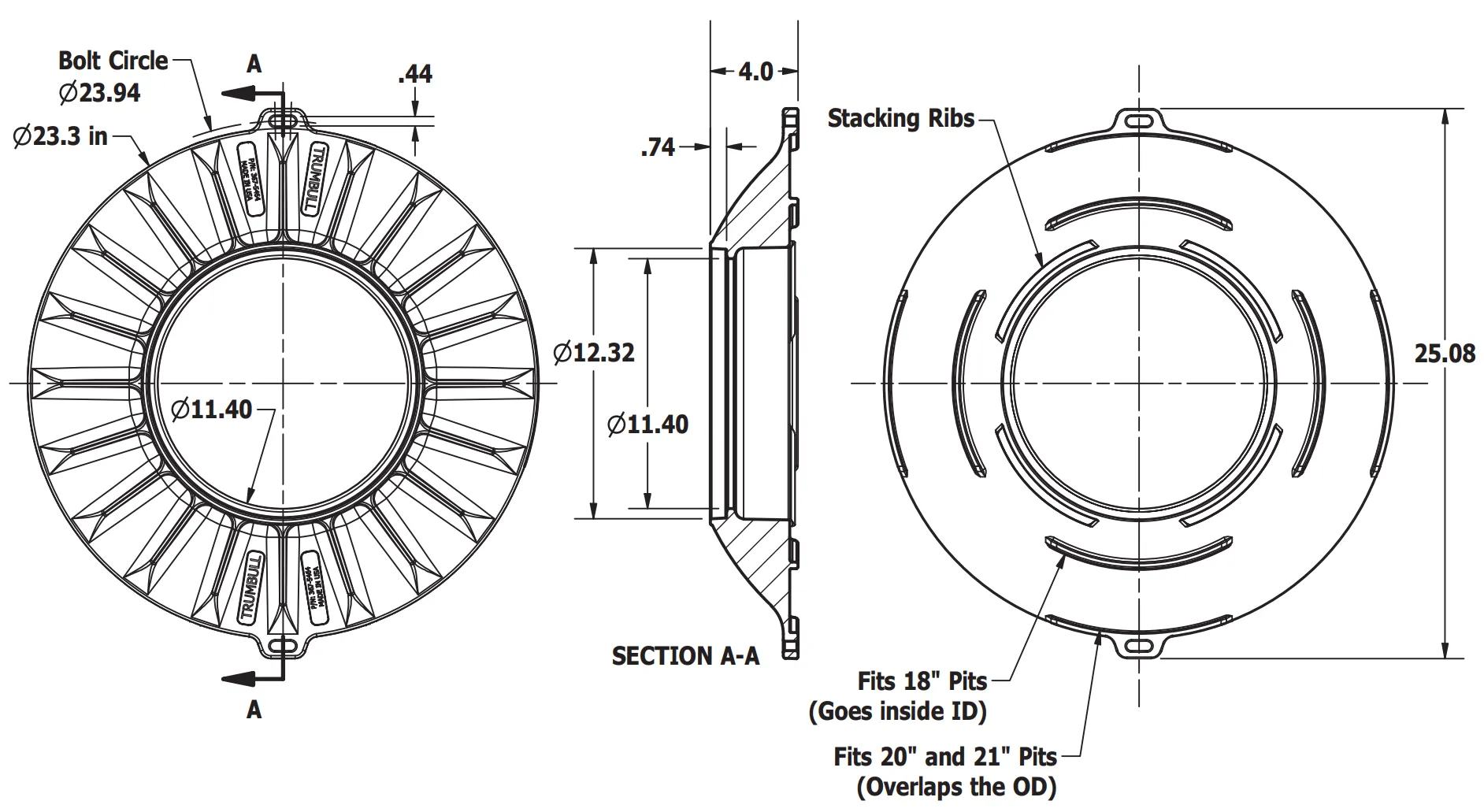

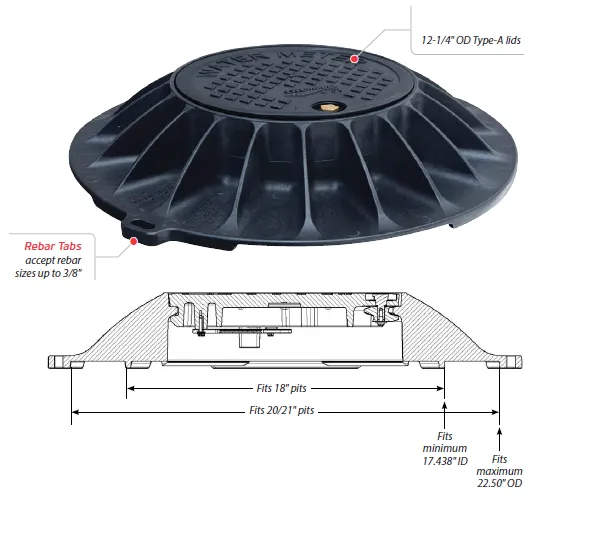

The Trumbull frame fits 15", 18", 20", and 21" round meter boxes. All Trumbull A-style lids fit this ring. The frame flange has a 4" rise between the top of the center lid and the top of the meter box.

Also available:

• Other sizes and shapes (oval, rectangular)
• Custom lettering
• Alternate locking mechanisms
• Nylon worm gears
• Snap-in adapter for Itron 100W
• Large pentagon bolt
• Optional magnets for use with valve and curb box locators
• Several custom features can be added per your specs

20,000 lb lids normally furnished with nylon worm gear. Also available with ductile worm gear, see chart below.

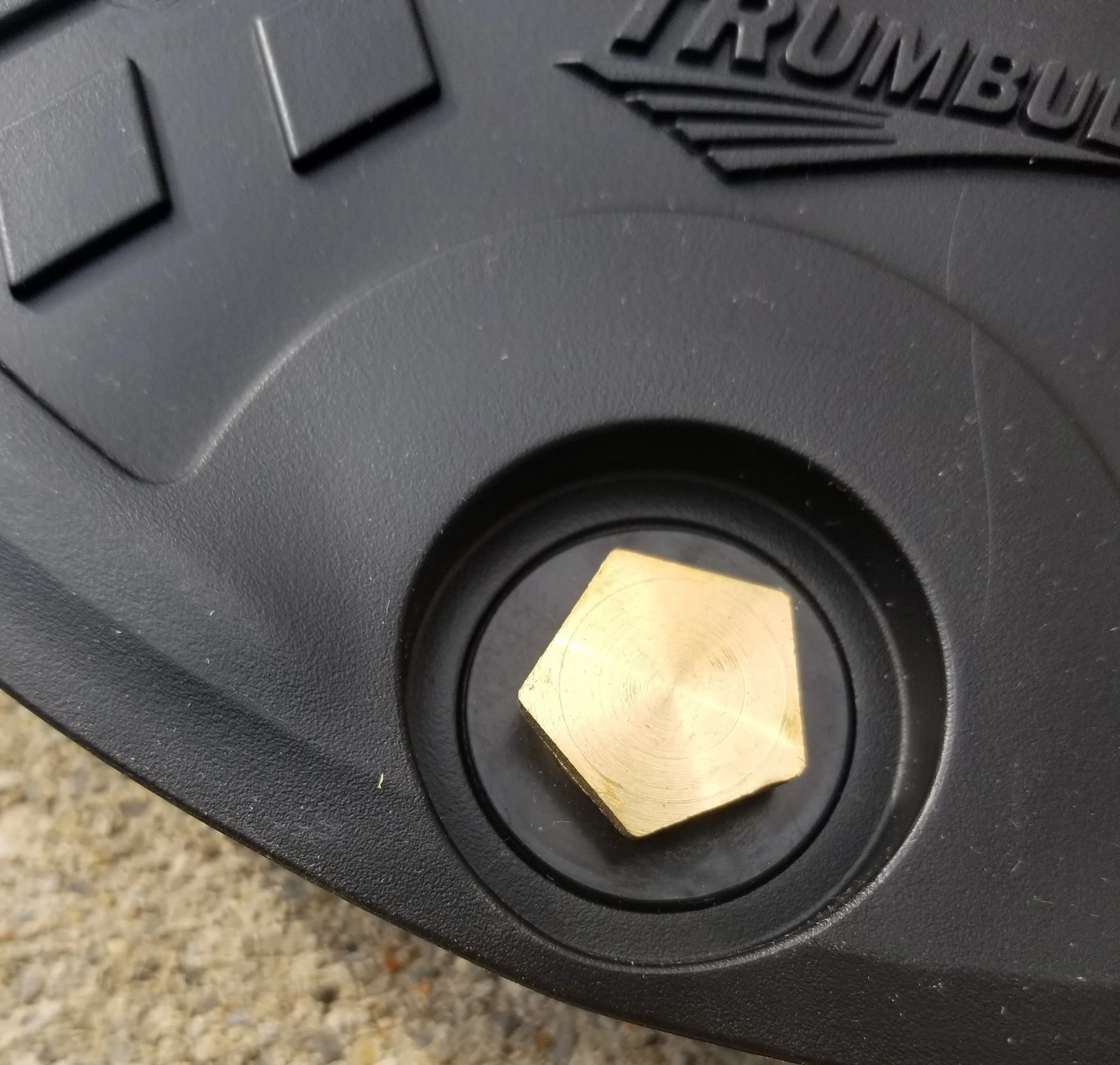

• All lids are normally furnished with standard (27/32”) pentagon bolt. Also available with large (1-1/32”) pentagon bolt.

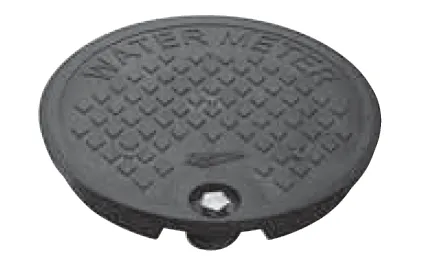

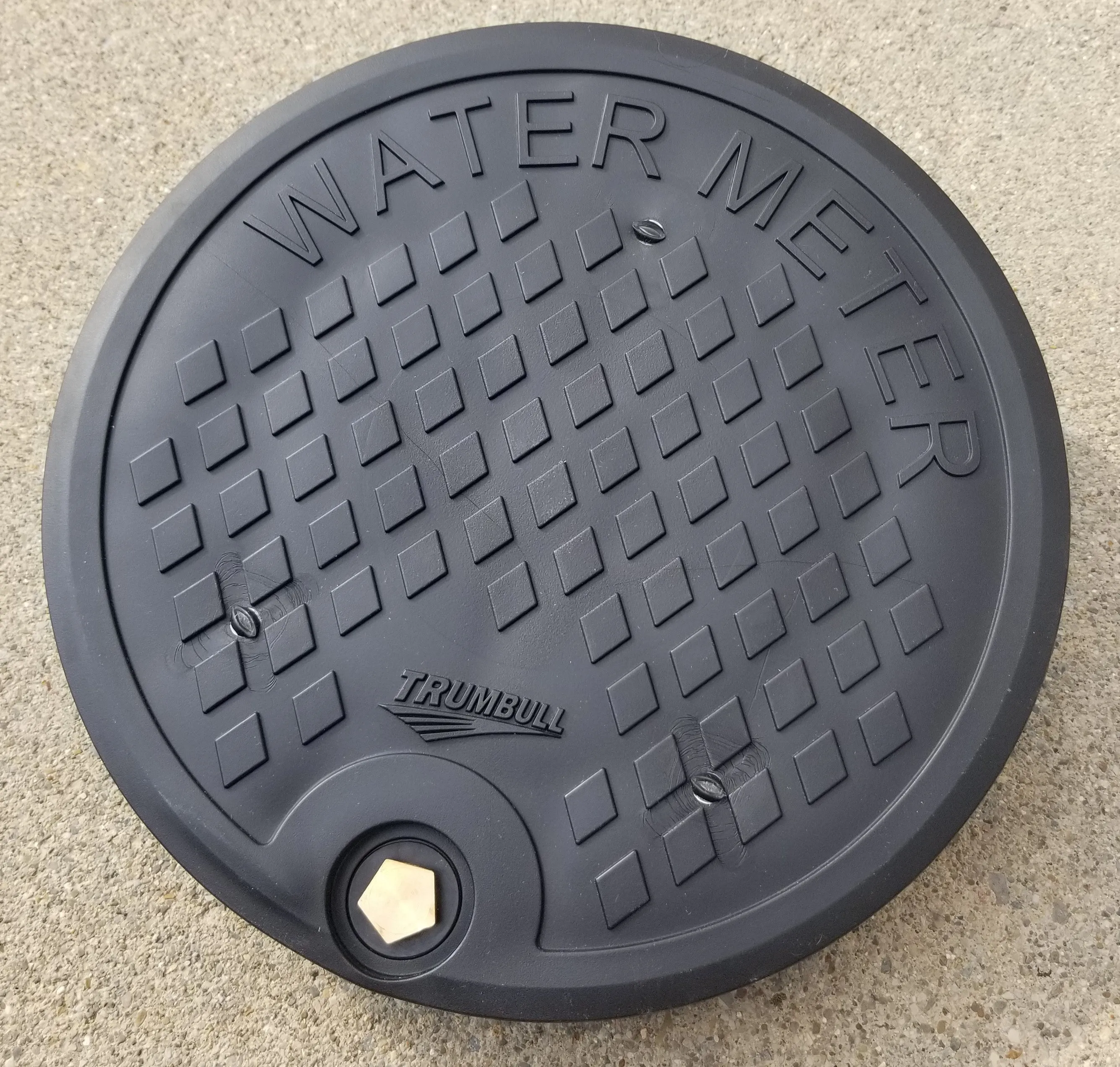

• Lids normally furnished marked “WATER METER”.
• Special lettering available (requires a minimum quantity), please inquire.
• All lids with counterbore (CBORE) have thru hole diameter of 1.88”.
• Bearing washers above and below 20,000 lb lids are UHMWPE.
• Frames shown for illustration purposes only, they are not included with lid.
• For explanation of asterisk points below, see “Additional Notes” on page 27.

items not on our website may be available by special order.
