Product Details
＋

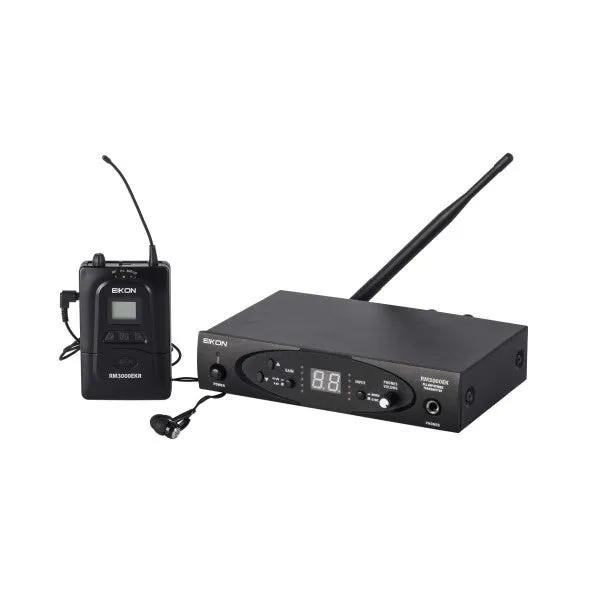

The system allows switching between mono or stereo mode for all the needs of live musicians, actors or speakers. The integrated limiter guarantees an optimal level of protection and a uniform sound reproduction, without distortion, with a frequency response between 50Hz and 15kHz.
Specifications
| TRANSMITTER | |
| RF Frequency Band | 863 ~ 865 Mhz or 673 - 697.800 MHz(A version) |
| Channel | depending on Frequency version |
| Oscillation Mode | PLL Sinthesized |
| Frequency Stability | 0,005% |
| Modulation Method | FM ( F3E ) |
| RF Max deviation | max 70 Khz |
| Audio Frequency Response | 50 Hz - 15 Khz |
| THD | <1% at 1 Khz |
| Spurious Emission | < 4nw |
| RF Power | low < 10 mw; middle < 50 mw;high < 100 mw |
| ( depending on national rules ) | |
| Audio Input | line level x 2 , Combo socket |
| Audio Output | xlr phone jack x 2 |
| Earphone Output | 6,3 mm stereo jack with adjustabel volume |
| Earphone Impedance | 16 Ω |
| Output Power ( 32 Ω ) | 2 x 100 mw |
| Amplifier Gain | low/high : - 10dB |
| Antenna Connector | TNC ( 50 Ω impedance ) |
| Power Supply | DC 12 / 18 V |
| Dimension (WxDxH)mm | 215 x 160 x 44 |

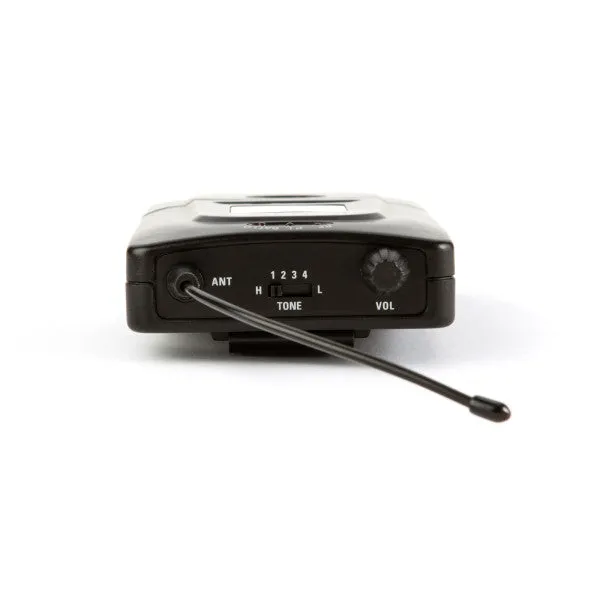

| RECEIVER | |
| RF Frequency Band | 863 ~ 865 Mhz or 673 - 697.800 MHz (A version) |
| Bandwidth | 2 MHz or 25 MHz |
| Channel | depending on Frequency version |
| Oscillation Mode | PLL Sinthesized |
| Frequency Stability | 0,005% |
| Modulation Method | FM ( F3E ) stereo |
| RF Max deviation | max 70 Khz |
| Receiving Mode | single receiving |
| Rf Receiving Sensitivity | -110 dBm |
| Squelch Level | fix |
| Audio Frequency Response | 50 Hz - 15 Khz |
| THD | <0,5% at 1 Khz |
| S/N Ratio | 90 dba |
| Stereo Separation | >45dB |
| Earphone Output | 3,5 mm stereo jack |
| Earphone Impedance | 16 Ω |
| Output Power ( 32 Ω ) | 2 x 100 mw |
| Eq | 4 selectable eq mode |
| Limiter | On/ Off |
| Power Supply | 2 x AA 1,5 volt battery |
| operating Time | up to 8 hours ( depending on volume ) |
| Dimension (WxDxH)mm | 64 x 20 x 100 |
