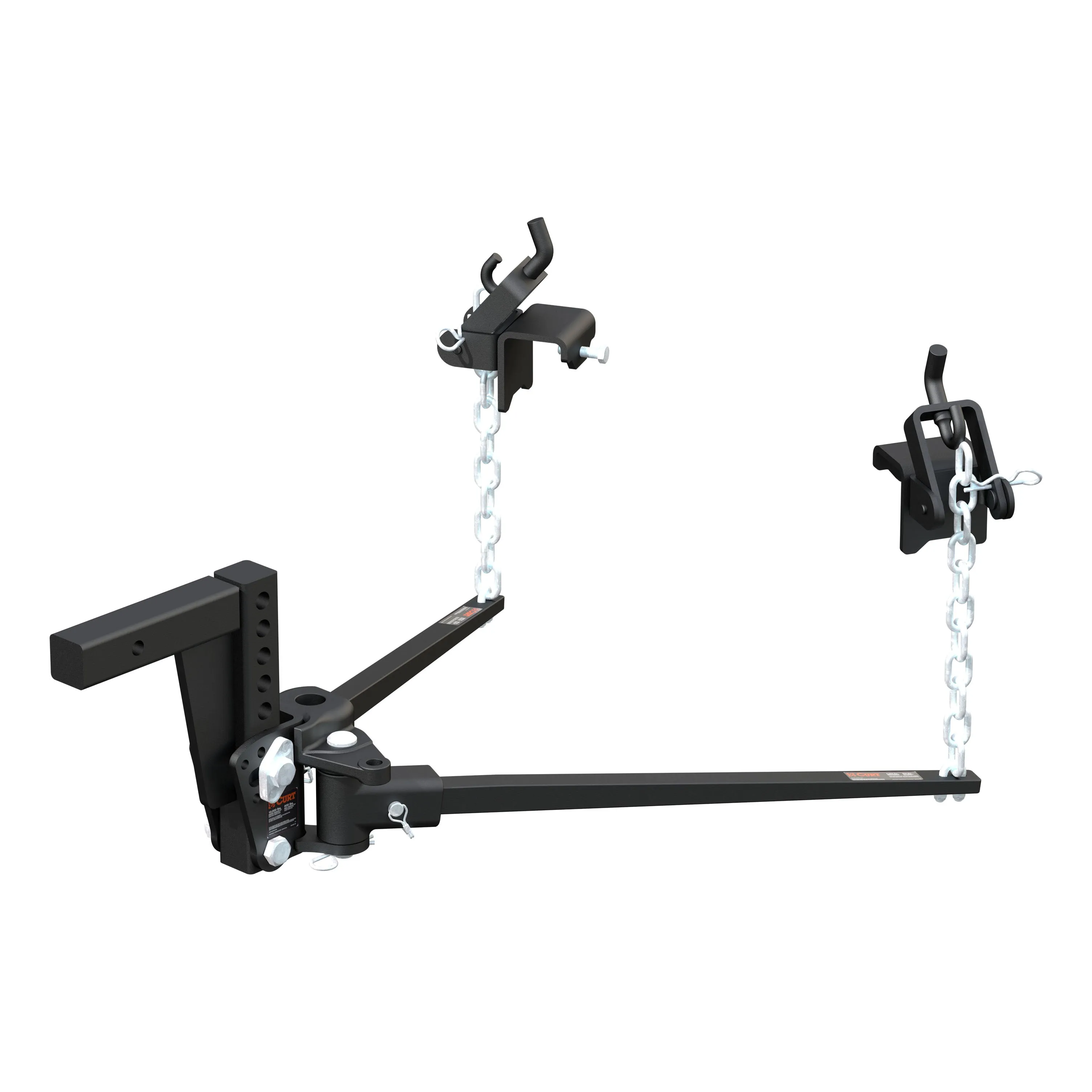

The CURT deep drop weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the axles. This model is made particularly for larger, lifted trucks, featuring an adjustable shank that provides a drop up to 7" and rise up to 10-1/2". Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This CURT WD hitch comes with a 2" x 2" deep drop shank and is compatible with most class 3, 4 and 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component). This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.

Resources

Specifications:

Box Height in Inches - XA	0
Box Length in Inches - XA	0
Box Width in Inches - XA	0
Description_ABR	TRUNN

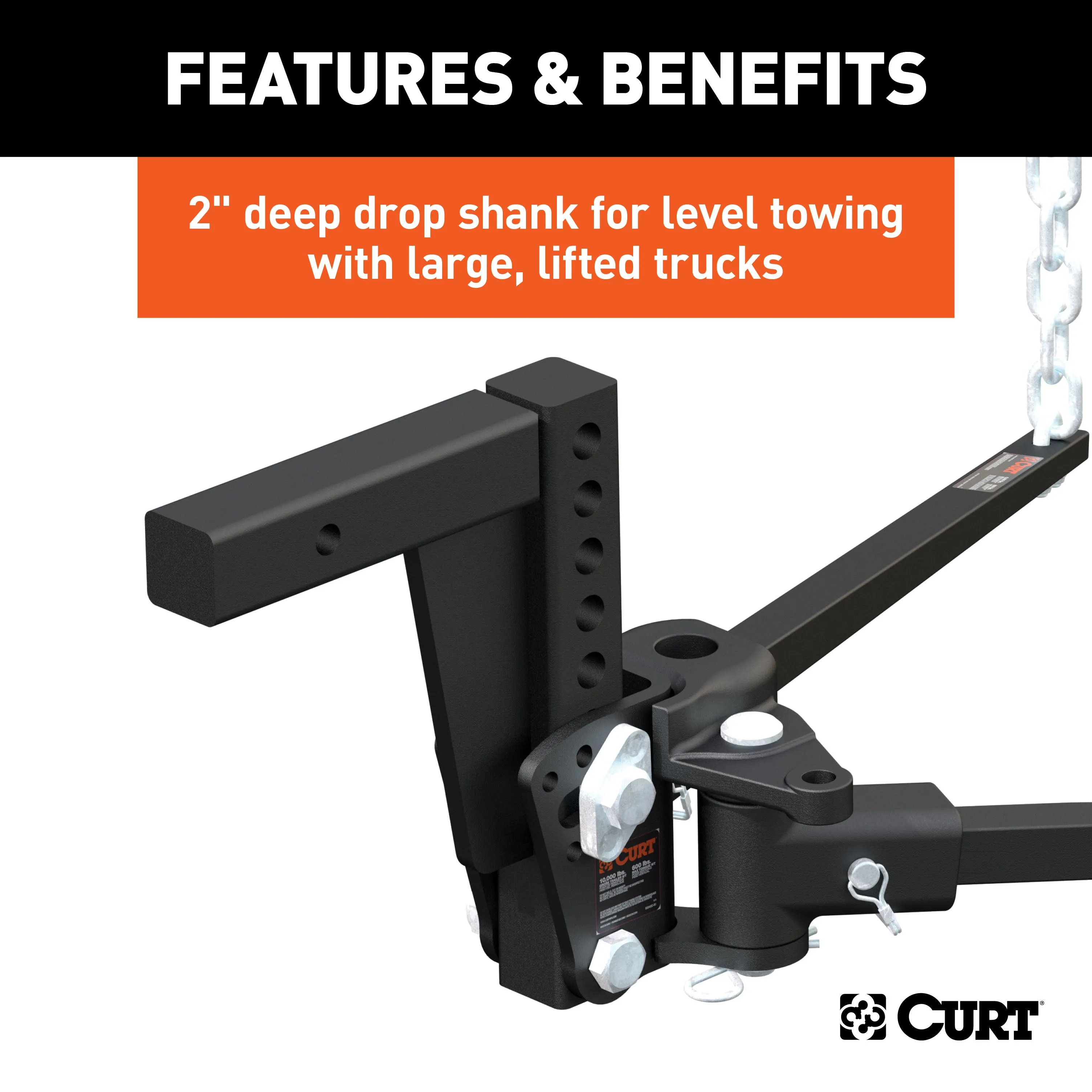

Description_ASC	2" x 2" deep drop shank for level towing with large, lifted trucks
Description_ASC	2-1/2" x 2-1/2" WD replacement shank also available
Description_ASC	Deep Drop Trunnion Bar Weight Distribution Hitch (8K - 10K lbs, 30-5/8" Bars)

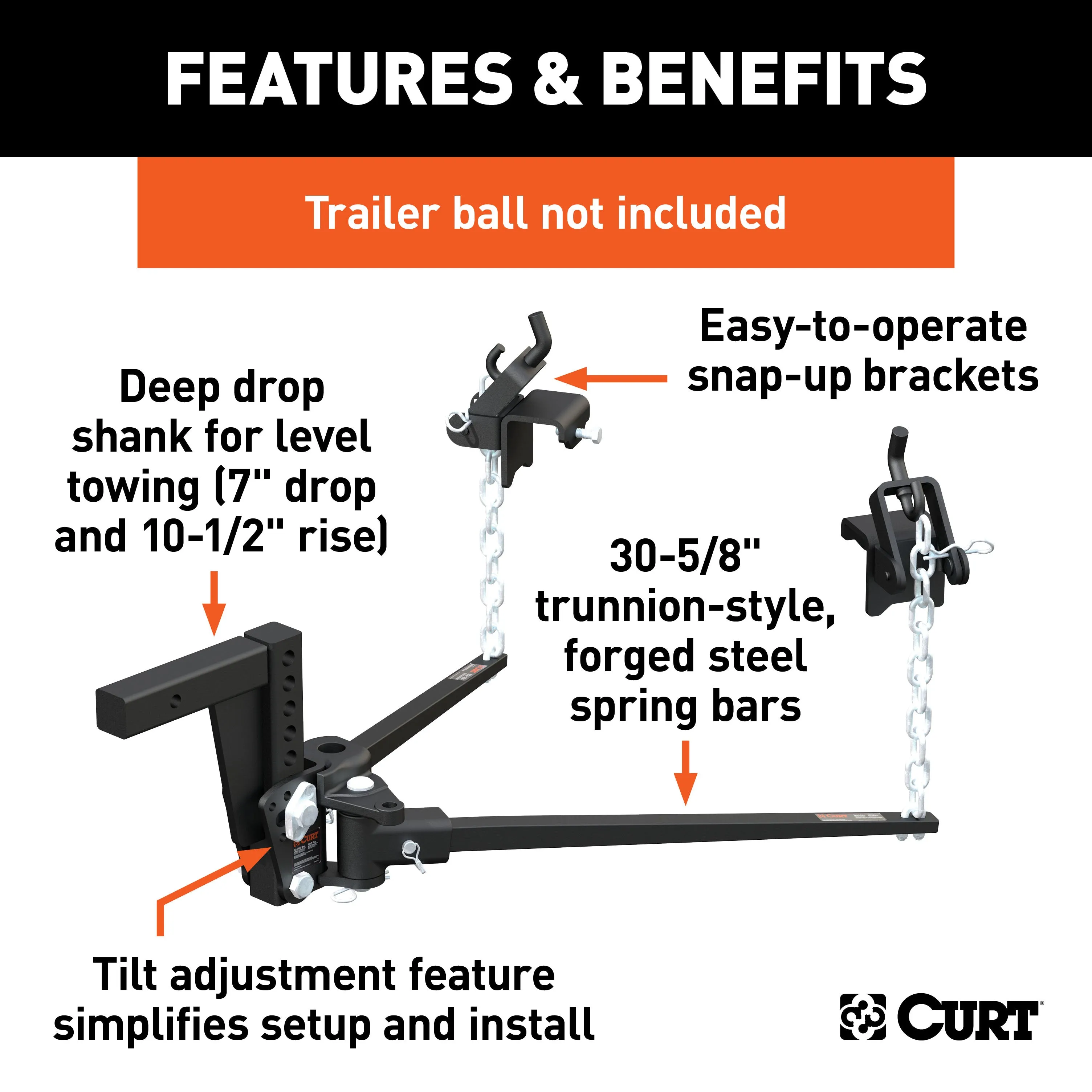

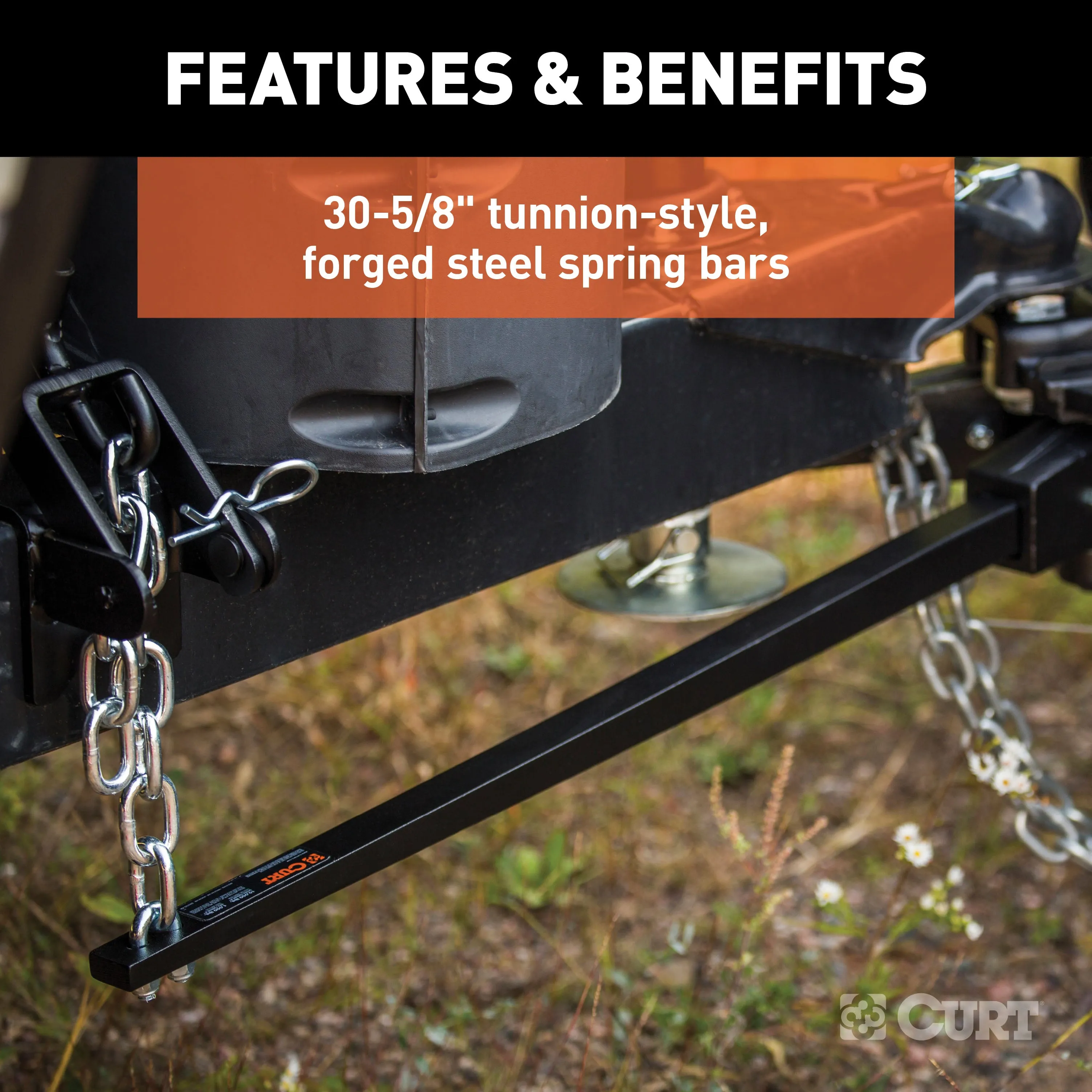

Description_ASC	Equipped with 30-5/8" trunnion-style, forged steel spring bars
Description_ASC	Features built-in sway control attachment tabs
Description_ASC	Heavy-duty, formed head can be adjusted for precise leveling
Description_ASC	Hookup brackets and lift handle allow for easy leveraging of spring bars

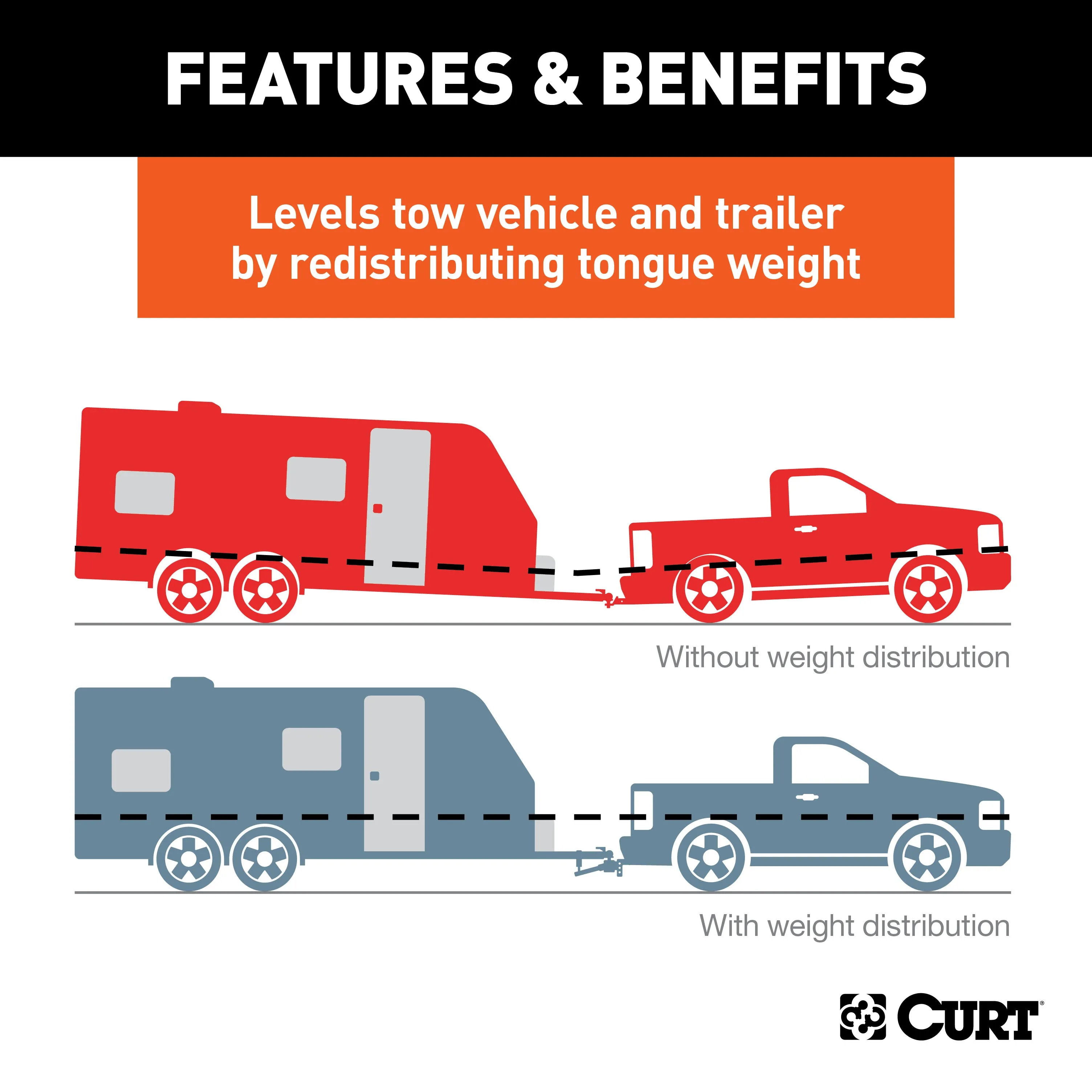

Description_ASC	Levels tow vehicle and trailer by redistributing a portion of the tongue weight
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)
Description_ASC	Protected by a highly durable carbide powder coat finish

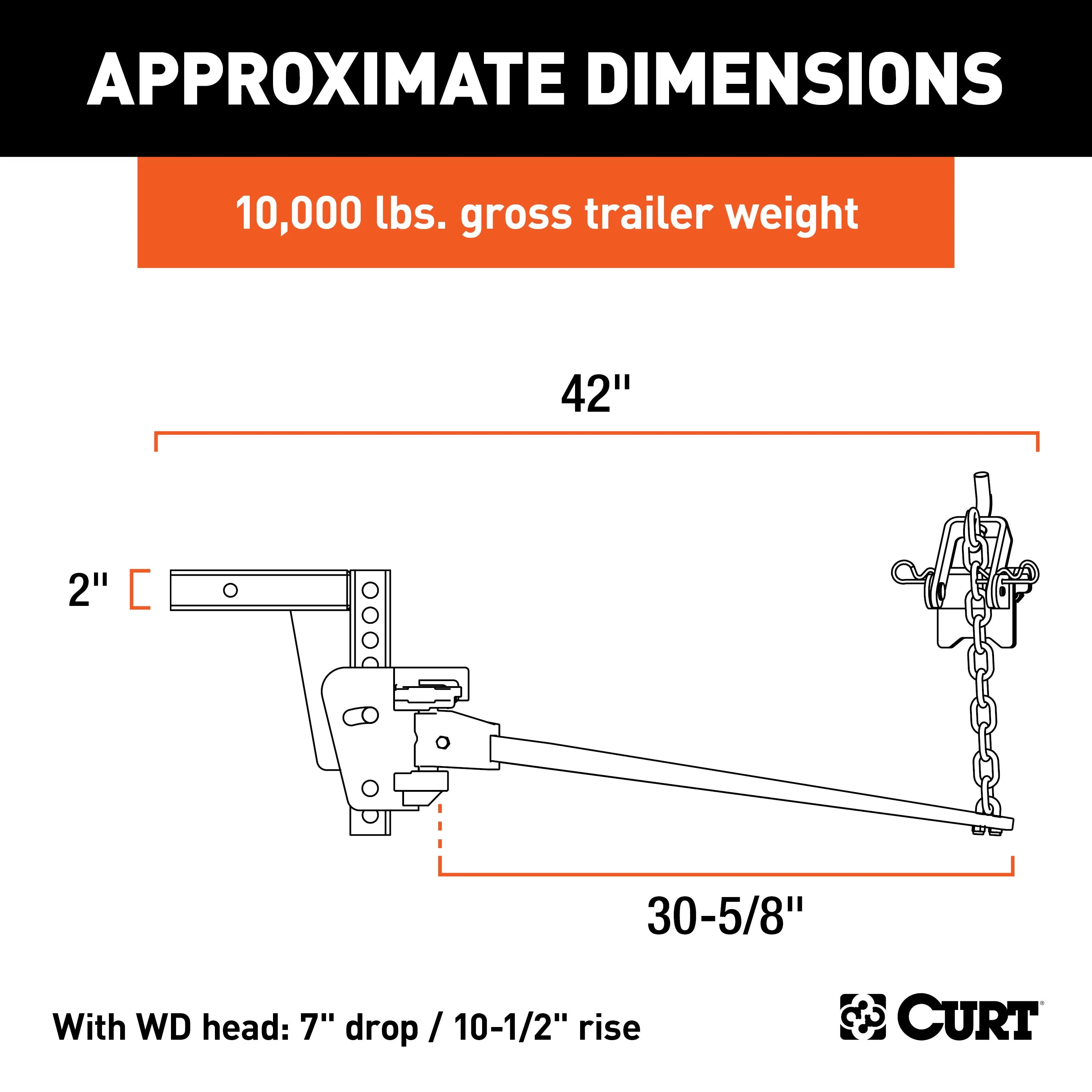

Description_ASC	Shank can be flipped to provide up to 7" drop or 10-1/2" rise

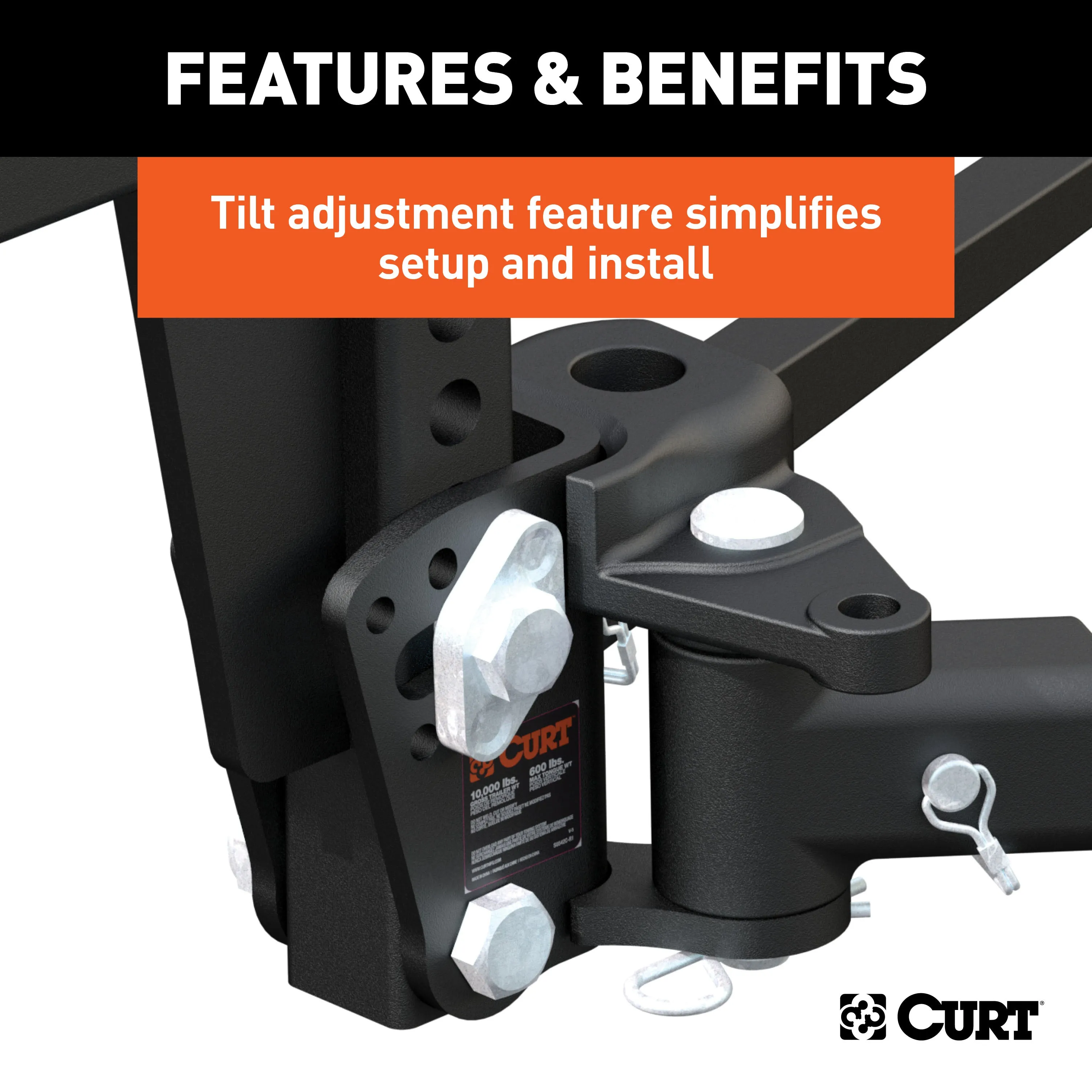

Description_ASC	Tilt adjustment feature simplifies setup and installation
Description_ASM	CURT 17352 Deep Drop Trunnion Weight Distribution Hitch, Up to 10K, 2-Inch Shank
Description_DEF	Trailer Weight Distribution Kit
Description_DES	Deep Drop Trunnion Bar Weight Distribution Hitch (8K - 10K lbs, 30-5/8" Bars)
Description_DES	Deep Drop Trunnion Bar Weight Distribution Hitch (8K-10K lbs; 30-5/8in. Bars)
Description_EXT	CURT 17352 Deep Drop Trunnion Weight Distribution Hitch, Up to 10K, 2-Inch Shank
Description_EXT	CURT 17352 Deep Drop Trunnion Weight Distribution Hitch; Up to 10K; 2-Inch Shank
Description_FAB	12 In. Adjustable Shank Fits 2 In. X 2 In. Receiver Tube Openings
Description_FAB	2 1/2 In. X 2 1/2 In. Wd Replacement Shank Also Available
Description_FAB	Equipped w/28 3/8 In. Trunnion-Style Forged Steel Spring Bars
Description_FAB	Features Built-In Sway Control Attachment Tabs
Description_FAB	Heavy-Duty Formed Head Can Be Adjusted For Precise Leveling
Description_FAB	Levels Tow Vehicle/Trailer By Distribution Of The Tongue Weight
Description_FAB	Protected By A Highly Durable Carbide Powder Coat Finish

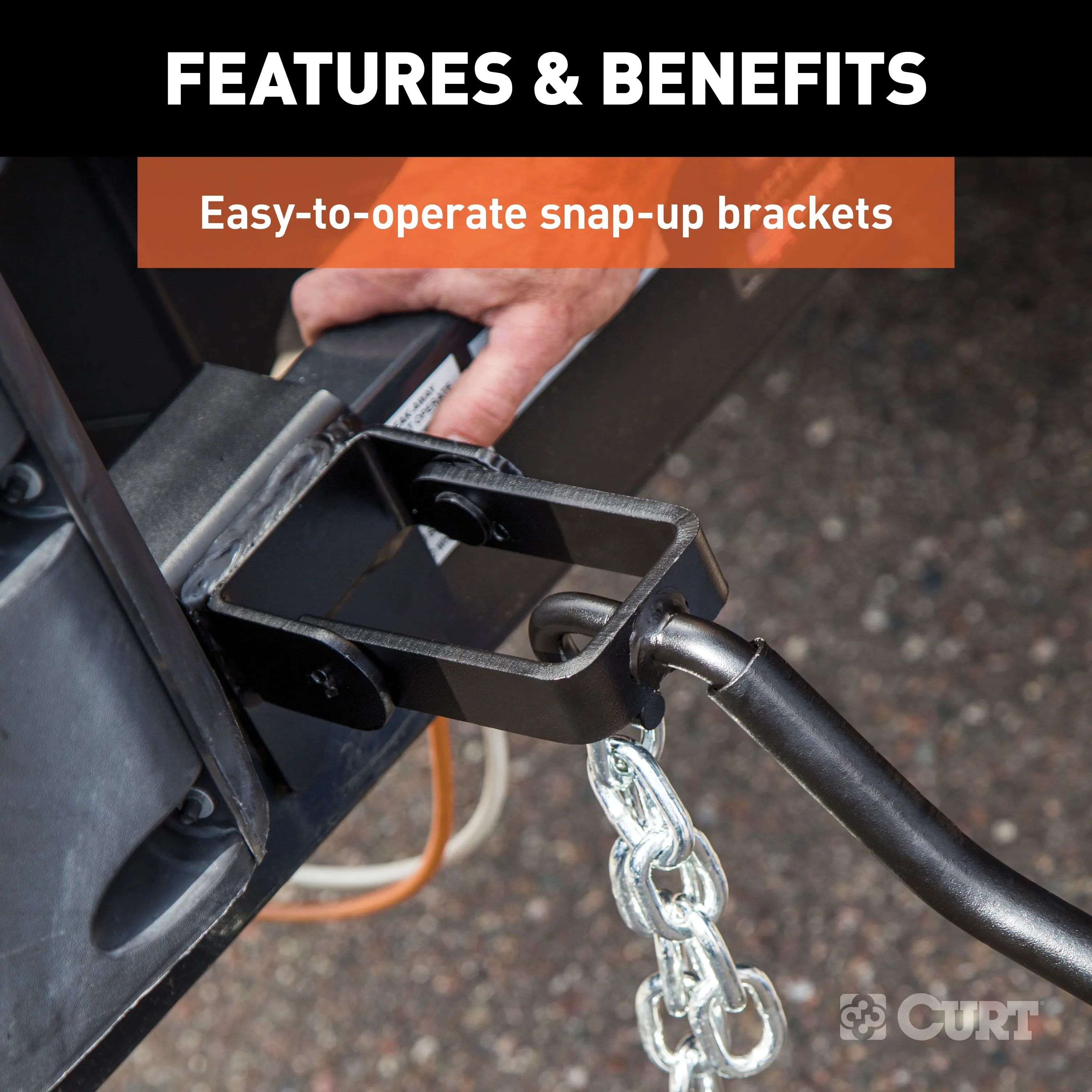

Description_FAB	Snap-Up Brackets And Lift Handle Allow For Easy Leveraging
Description_INV	Deep Drop Weight Distribution Hitch
Description_KEY	kit rv safe camper ez parts leveler equalizing mount drop bracket rigid balancing vechile accessories stability assembly motor home bolt springs weightdistribution auto wd weigh hookup distrubution hd systems transfer unit chain-lift camping clamp truck
Description_MKT	The CURT deep drop weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the axles. This model is made particularly for larger, lifted trucks, featuring an adjustable shank that provides a drop up to 7" and rise up to 10-1/2". Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This CURT WD hitch comes with a 2" x 2" deep drop shank and is compatible with most class 3, 4 and 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component). This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.
Description_SHO	Deep Drop Trunnion B
Description_SHO	Deep Drop WD Hitch
Description_SLA	The CURT deep drop weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the axles. This model is made particularly for larger, lifted trucks, featuring an adjustable shank that provides a drop up to 7" and rise up to 10-1/2". Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This CURT WD hitch comes with a 2" x 2" deep drop shank and is compatible with most class 3, 4 and 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component). This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.
Drop	7 IN
Finish - XA	CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW)	8,000 LB - 10,000 LB
height	8.25
Item Class - XA	OBS
Item Height - XA	0.000
Item Length - XA	0.000
Item Width - XA	0.000
length	35.5
LTL	N
Parcel Allowed - XA	Yes
Product Weight - XA	0.000
Rate Class - XA	70.0
Receiver Tube Size	2 IN
Retail Height - XA	8.250
Retail Length - XA	35.500
Retail Width - XA	13.000
Rise	10-1/2 IN
Shipping Weight - XA	95.120
Tariff 301 - XA	Yes
Title	Deep Drop Trunnion Bar Weight Distribution Hitch (8K - 10K lbs, 30-5/8" Bars)
Tongue Weight (TW)	800 LB - 1,000 LB
Warranty	Limited Lifetime Warranty (One-Year Parts)
weight	95.12
width	13.0
