Product Details
＋

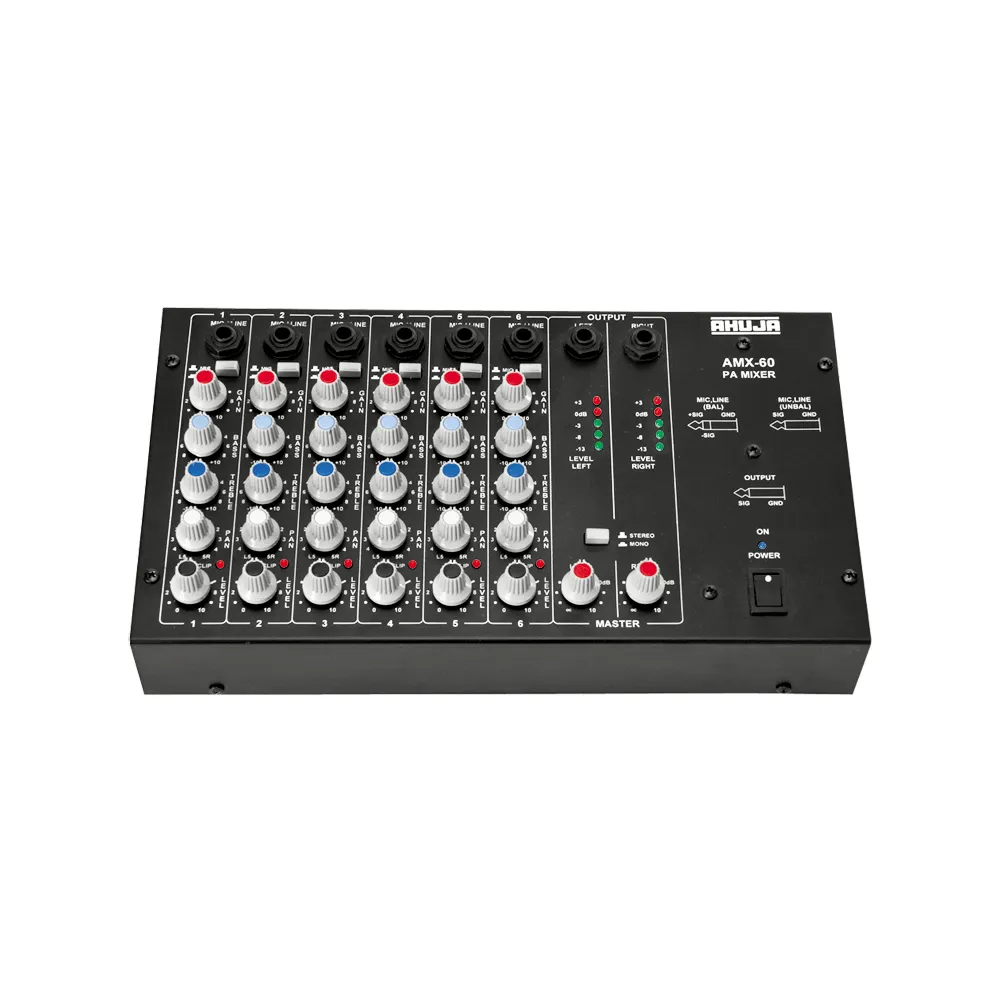

General Purpose 6 Channel PA Mixer Preamplifier
Input Channels: Each Channel has a 1/4€� balanced phone jack for Mic/Line & accepts both balanced & unbalanced signals.
MONO/STEREO Output: Mono output is available from either Left or Right output jacks when the switch is in €˜Mono€™ position.
Each channel has Gain, Bass, Treble, PAN and Level controls with Clip LED indicator.
Individual five-segment LED array for left and right outputs.
Tech Specs
| Power Requirements | AC: 220-240v 50/60Hz |
| MIC Input (Impedance/Gain) | 2k„¦ Balanced/62dB, 1k„¦ Unbalanced/62dB |
| LINE Input (Impedance/Gain) | 20k„¦ Balanced/42dB, 10k„¦ Unbalanced/42dB |
| Distortion | < 0.1% |
| Frequency Response | 20Hz-18 kHz (-1dB) |
| Tone Controls | Bass: ± 12dB at 100Hz, Treble: ± 12dB at 10kHz |
| Line Output (RATED/MAX) | 0dBm/ 18dBm (775mV/6.5V) |
| Signal to Noise Ratio | > 68dB |
| Dimensions | W295 X H70 X D180mm |
| Weight | 2.4Kg |
