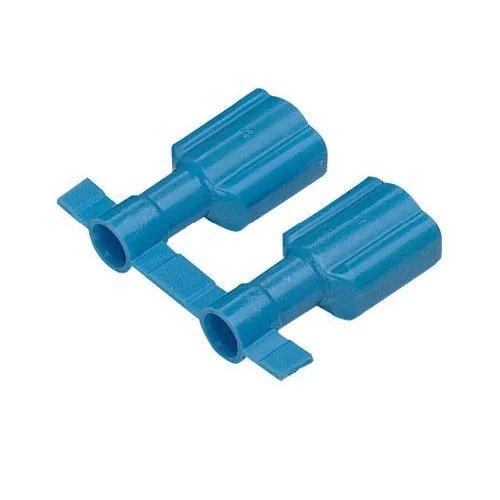

This specific Reel Smart Male Disconnect is designed for wire gauges between 16 and 14 AWG. With the product code "DPF14-250FIMB-K", it hints at a particular model variant or SKU. It is available in a pack of 1000 units. The "0.46" likely indicates a particular dimension, possibly the width or another attribute of the disconnect in inches.
Also Known As:
• 0.46-inch Male Disconnect Terminal (Pack of 1000)
• DPF14-250FIMB Quick Connect Male Terminal
• Reel Smart 16-14 AWG Nylon Crimp Male Disconnect
Common Applications:
• Specialized automotive electrical systems.
• Control panel assemblies.
• Electrical installations in commercial and industrial settings.
• Audio-visual equipment setups.
• Electrical wiring in home appliances.
• Wiring for HVAC systems.
Standards Met:
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Construction:
• Metallic Component: Typically made from tin-plated copper or similar material, ensuring optimum conductivity and resistance against corrosion.
• Insulation: Premium nylon material that offers electrical insulation and mechanical robustness.
• Type: Male disconnect form-factor designed to easily slot into a female counterpart.
• Wire Compatibility: Specifically tailored for 16-14 AWG wire gauges.
Features:
• Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
• Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects
• Fully insulated design provides protection from electrical shorts
• UL and CSA rated up to 600 V per UL 310
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• UL Flammability UL 94V-2, maximum insulation temperature 221°F (105°C)
Specification:
| Disconnect Type: | Male Tab Disconnect |
| Insulation Material: | Premium Nylon |
| Insulation Type: | Fully Insulated |
| Maximum Copper Conductor Size (AWG): | #14 |
| Maximum Wire Size (AWG): | #14 |
| Minimum Wire Size (AWG): | #16 |
| Minimum Copper Conductor Size (AWG): | #16 |
| Wire Strip Length: | 1932-09-01 In. (7.1 mm) |
| Tab Size: | 0.250 x 0.032 In. (6.3 x 0.8 mm) |
| Maximum Voltage (V): | 600 |
| Base Material: | Brass |
| Finish/Coating: | Nickel-Plated |
| Color Code: | Blue |
| Barrel Type: | Funnel |
| Flammability Rating: | UL94V-2/UL94-HB |
| Insulation Diameter: | 0.16 In. (4.1 mm) |
| Maximum Operating Temperature: | 105 °C (221 °F) |
| Sub Brand: | Reel Smart™ |
| Maximum Metric Conductor Size (mm²): | 2.5 |
| Minimum Metric Conductor Size (mm²): | 1.5 |
| Maximum Wire Insulation Diameter: | 0.16 In. (4 mm) |
| Overall Length: | 0.92 In. (23.4 mm) |
| Overall Width: | 0.46 In. (11.7 mm) |
| Tongue Angle: | Straight |
| Seam Type: | Butted |
| Packaging Type: | Reel |
| Product Type: | Disconnect |
| For Use With: | Crimp press with CA9 (CD9-11B) or CA-800EZ (CD-800-11) applicator |
| Maximum Voltage (kV): | 0.6 |
| Part No: | DPF14-250FIMB-K |
