About:

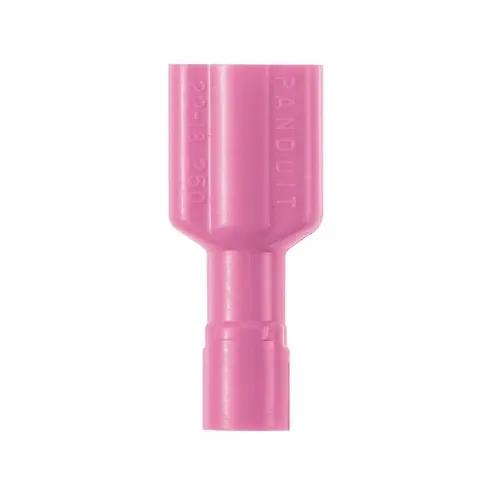

This specific Disco Grip Female Disconnect is designed for wire gauges ranging between 22 and 18 AWG. The product code "DPF18-250FIB-C" suggests a particular model or SKU. Packaged in a set of 100 units, the "0.132" probably represents a specific dimension, potentially the width or a related measurement of the disconnect terminal. The Disco Grip Female Disconnect Terminal with the product code DPF18-250FIB-C is tailored for wire gauges between 22 and 18 AWG
Also Known As:
• 0.132-inch Female Disconnect Terminal (Pack of 100).
• DPF18-250FIB-C Quick Connect Female Terminal.
• Disco Grip 22-18 AWG Nylon Crimp Female Disconnect.
Common Applications:
• Connections in DIY electronics projects.
• Control panels in home appliances.
• Electrical installations in residential and light commercial settings.
• Hobbyist electrical circuits and prototypes.
• Lighting systems.
• Audio-visual equipment, especially where secure and frequent connections/disconnections are needed.
Standards Met:
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Construction:
• Metallic Component: Typically made from tin-plated copper or similar material, ensuring optimum conductivity and resistance against corrosion.
• Insulation: Premium nylon material that offers electrical insulation and mechanical robustness.
• Type: Male disconnect form-factor designed to easily slot into a female counterpart.
• Wire Compatibility: Specifically tailored for 16-14 AWG wire gauges.
Features:
• Fully insulated design provides protection from electrical shorts
• Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• UL Flammability UL 94V-2, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 310, where applicable
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specification:
| Disconnect Type: | Female Disconnect-Right Angle |
| Insulation Material: | Premium Nylon |
| Insulation Type: | Fully Insulated |
| Maximum Copper Conductor Size (AWG): | #18 |
| Maximum Wire Size (AWG): | #18 |
| Minimum Wire Size (AWG): | #22 |
| Minimum Copper Conductor Size (AWG): | #22 |
| Wire Strip Length: | 1932-09-01 In. (7.1 mm) |
| Tab Size: | 0.250 x 0.032 In. (6.3 x 0.8 mm) |
| Maximum Voltage (V): | 600 |
| Base Material: | Brass |
| Finish/Coating: | Tin-Plated |
| Color Code: | Red |
| Barrel Type: | Funnel |
| Flammability Rating: | UL94V-2/UL94-HB |
| Insulation Diameter: | 0.11 In. (2.7 mm) |
| Maximum Operating Temperature: | 105 °C (221 °F) |
| Sub Brand: | Disco-Grip |
| Maximum Metric Conductor Size (mm²): | 1 |
| Minimum Metric Conductor Size (mm²): | 0.5 |
| Maximum Wire Insulation Diameter: | 0.11 In. (2.7 mm) |
| Overall Height: | 0.22 In. (5.6 mm) |
| Overall Length: | 0.84 In. (21.3 mm) |
| Overall Width: | 0.31 In. (7.9 mm) |
| Tongue Angle: | Straight |
| Seam Type: | Butted |
| Packaging Type: | Bottle |
| Product Type: | Disconnect |
| For Use With: | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV): | 0.6 |
| Part No: | DPF18-250FIB-C |
